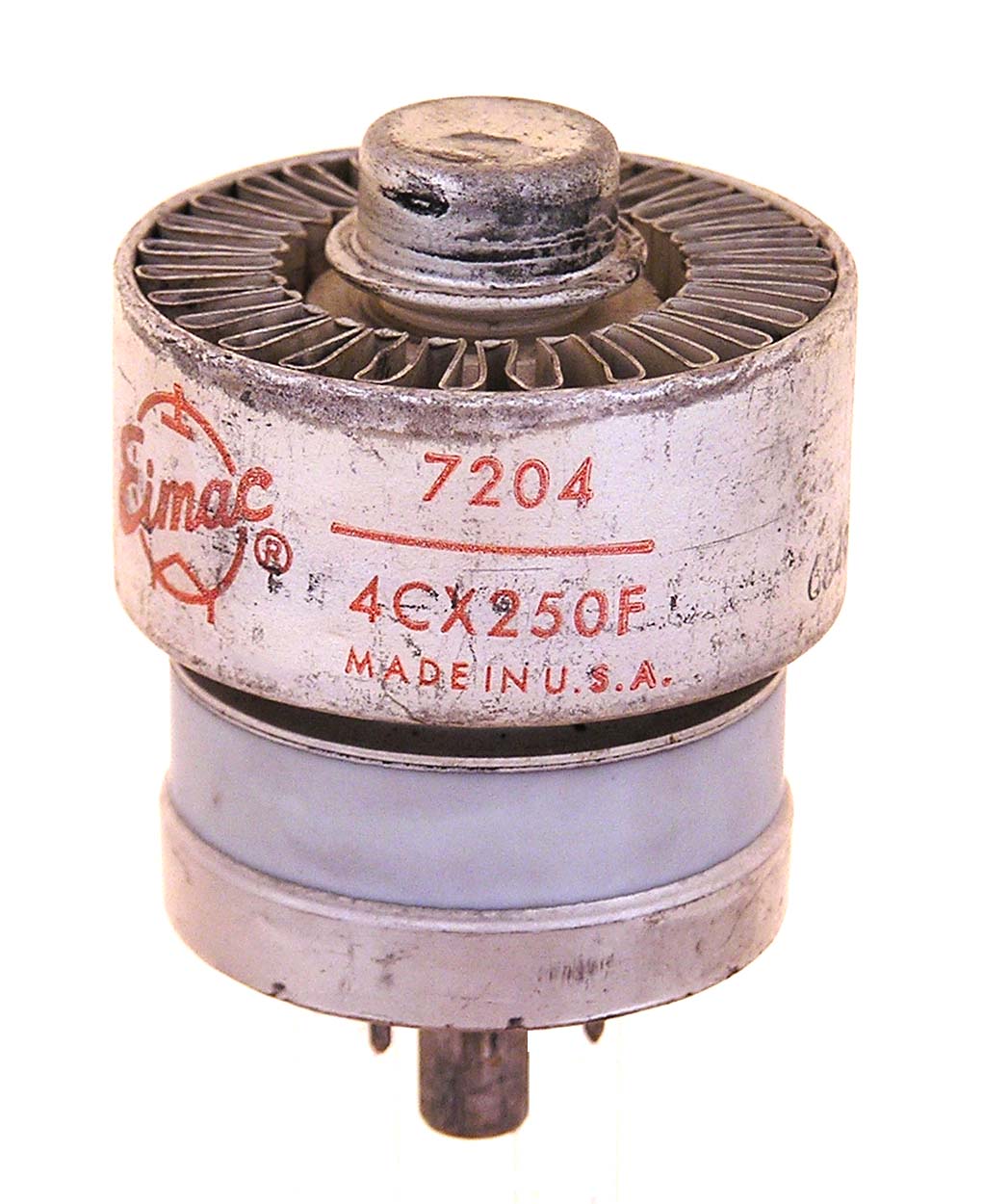

4CX250F/7204

The 4CX250F (7204) is a 250 watt, forced air cooled, power tetrode with a full rating frequency of 500 MHz. The 4CX250F (7204) was replaced by the 4CX250FG (8621).

Length = 2.47" Diameter = 1.64"
Max voltage = 2000
Max current = 250 ma
Fil voltage = 26.5
Fil current = .54 amps         GOTO INDEX
