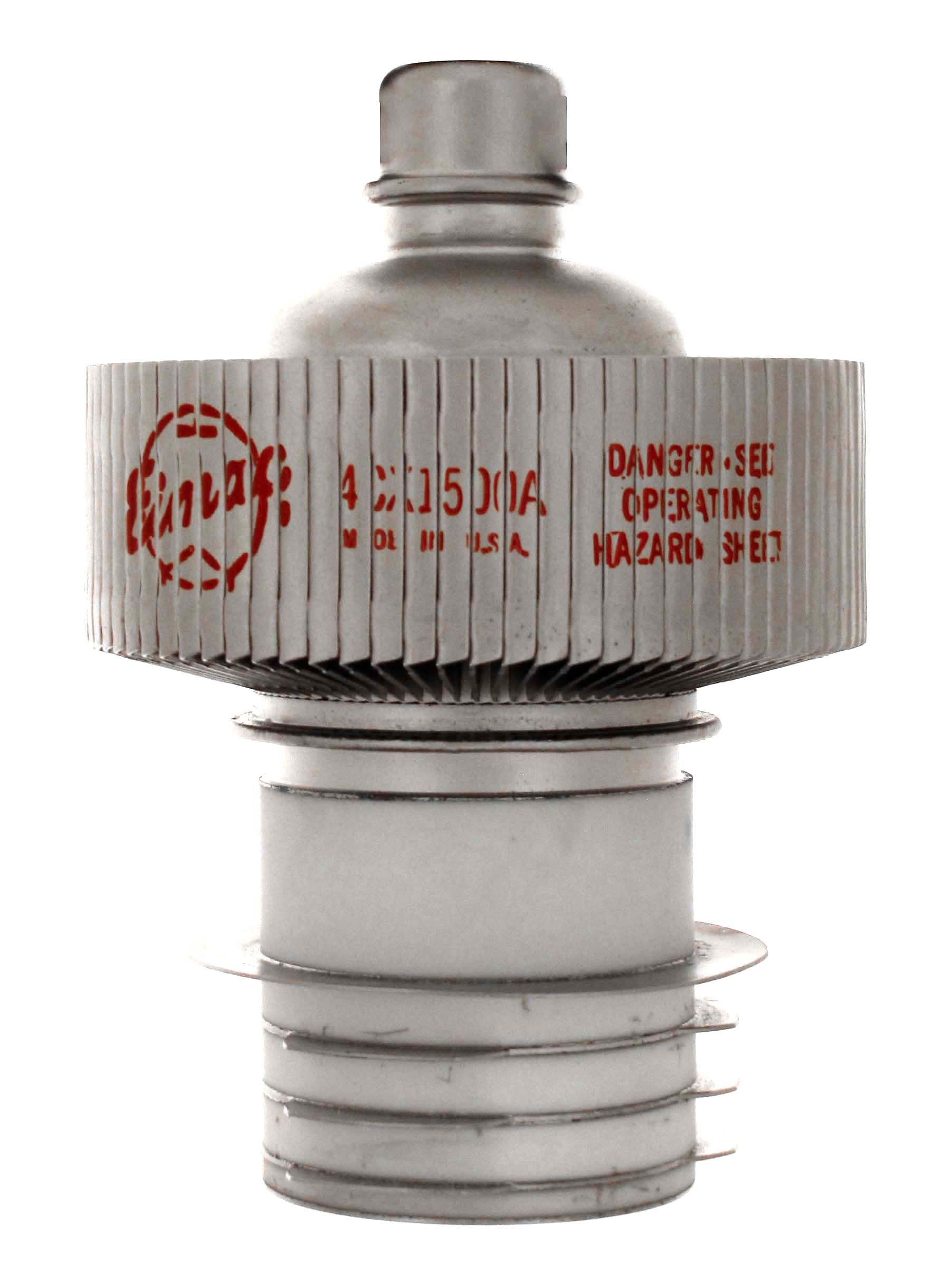

4CX1500A

The 4CX1500A is a 1500 watt, forced air cooled, tetrode with a maximum full rating frequency of 110 MHz. A solid screen ring adds to isolation with the plate.

Length = 4.83" Diameter = 3.37"
Max voltage = 5000
Max current = 1 amp
Fil voltage = 5
Fil current = 38 to 43 amps
Data sheet:
