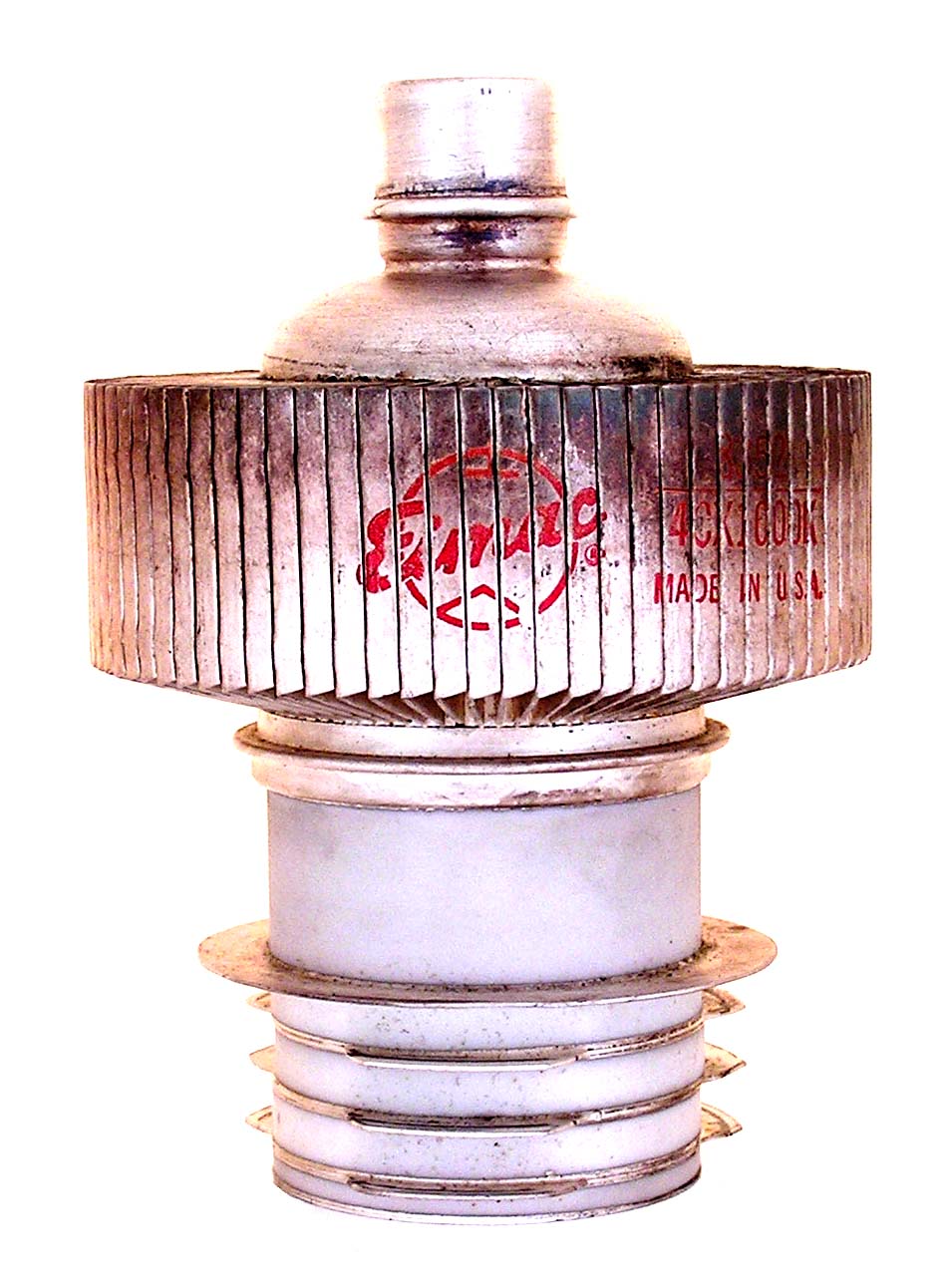

4CX1000K

The 4CX1000K or 8352 is a 1000 watt, forced air cooled, tetrode with a maximum full rating frequency of 110 MHz. This tube differs from the 4CX1000A by having a solid screen ring for better isolation at UHF frequencies.

Length = 4.80" Diameter = 3.37"
Max voltage = 3000
Max current = 1 amp
Fil voltage = 6
Fil current = 9 amps         GOTO INDEX
