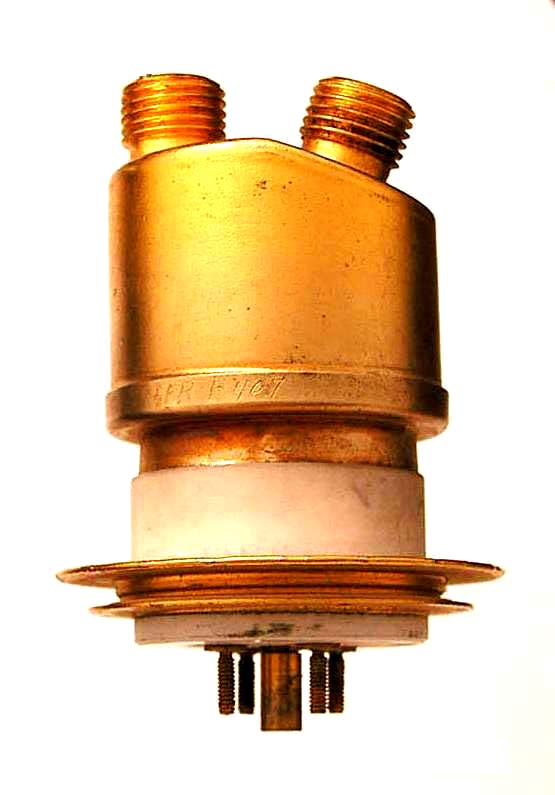

4CW800B

The 4CW800B is a 800 watt, water cooled, tetrode with full ratings to 500 and usable to over 800 MHz. The 4CW800F is the same tube with a 26.5 volt filament.

Length = 3.00" Diameter = 2.03"
Max voltage = 3000
Max current = 600 ma
Fil voltage = 6
Fil current = 4.4 amps         GOTO INDEX
