4CW2000A

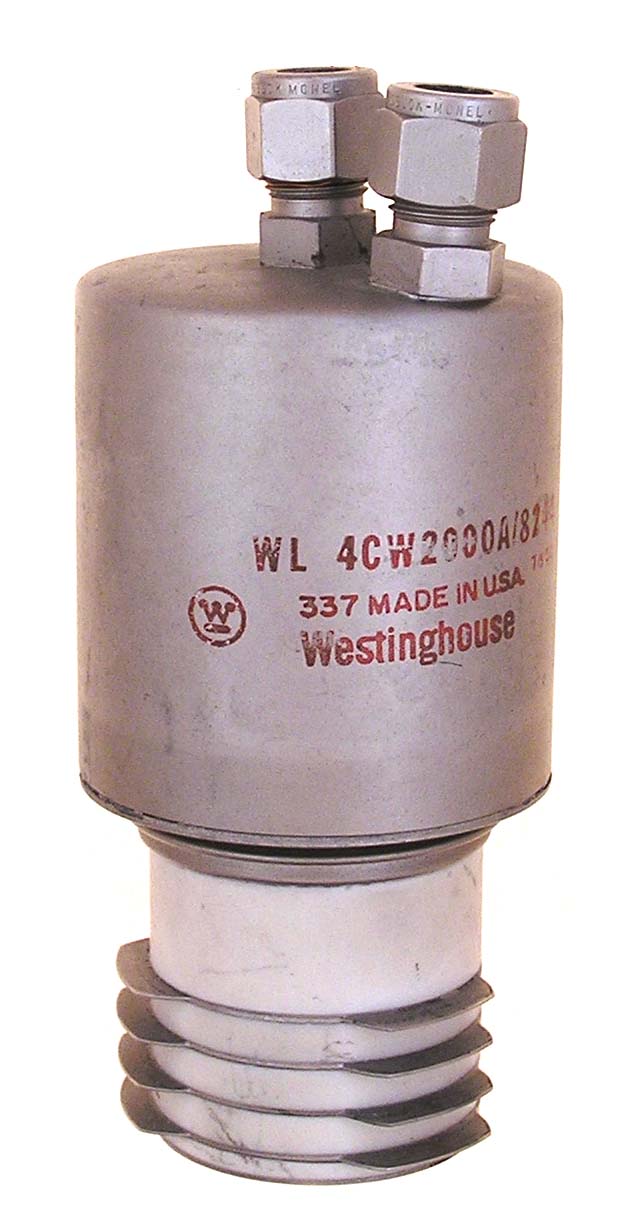

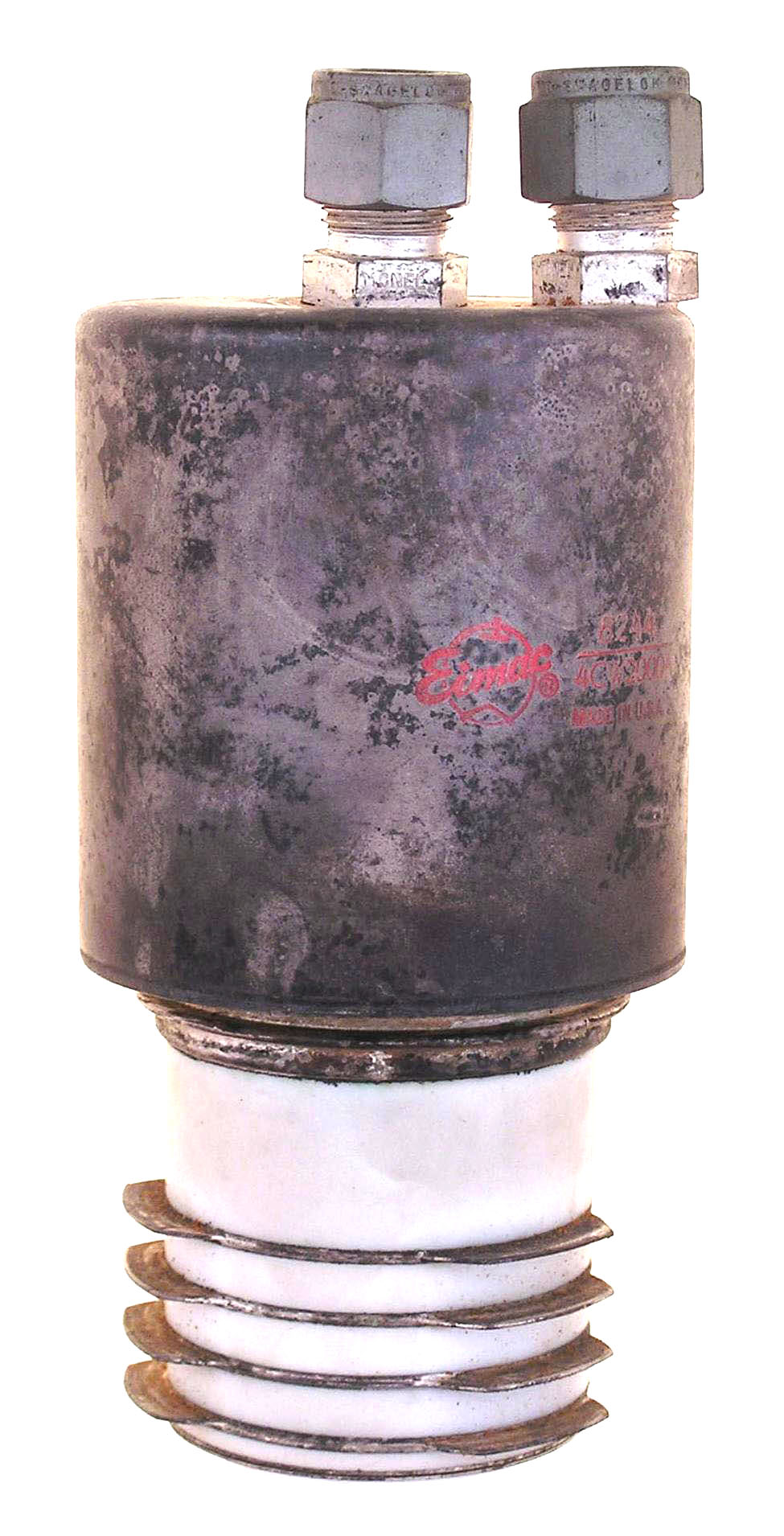

The 4CW2000A or 8244 is a 2000 watt, water cooled, tetrode with a maximum full rating frequency of 110 MHz. The 4CX1000A is the same tube with a forced air cooled anode. The first example is an Eimac and the second a Westinghouse.

Length = 5.88" Diameter = 2.62"
Max voltage = 3000
Max current = 1 amp
Fil voltage = 6
Fil current = 9.5 to 11.5 amps         GOTO INDEX
