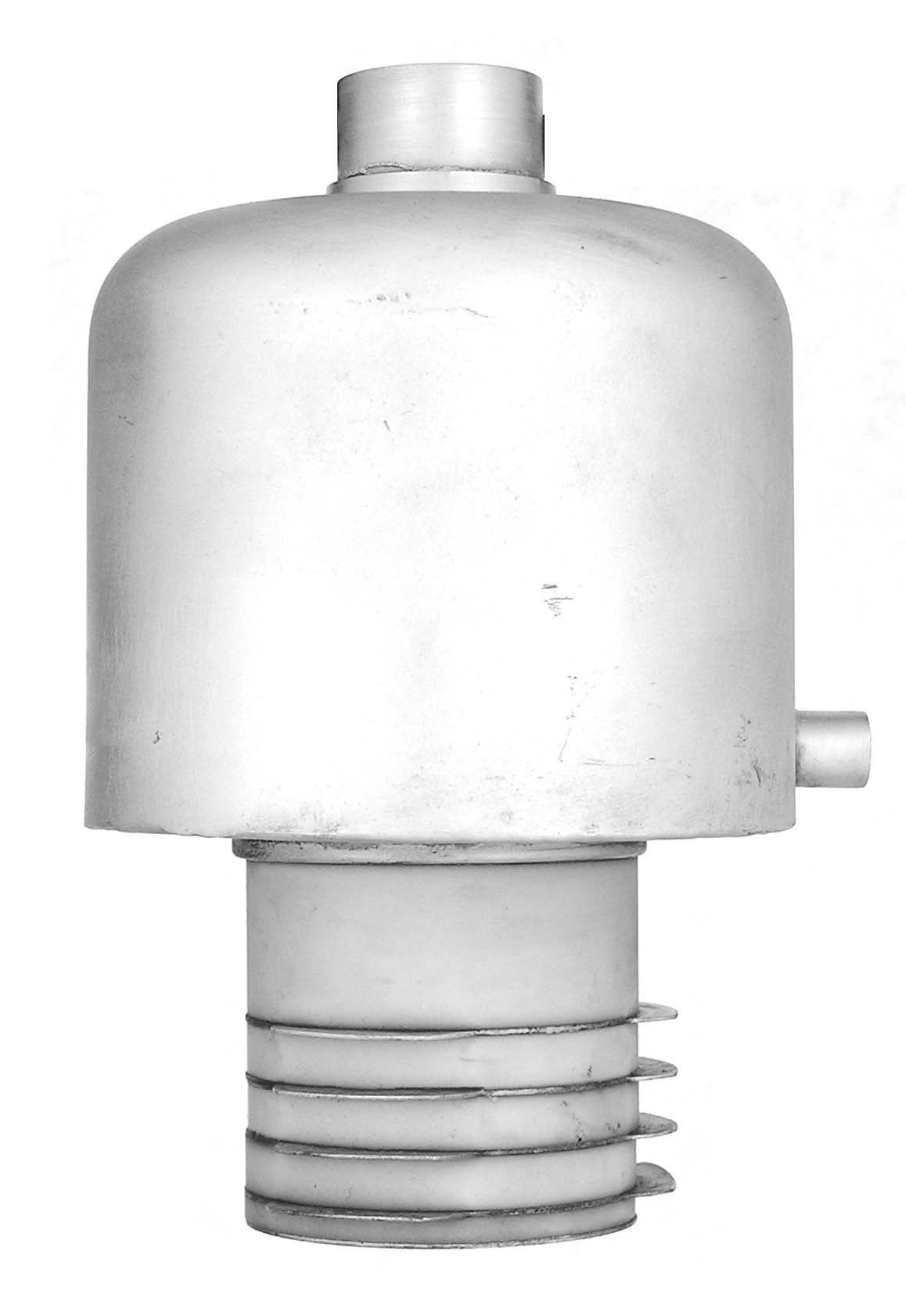

The 4CV1500B is a 1500 watt vapor phase cooled tetrode with full ratings to 110 MHz. These tubes were never produced in any quantity.
Length = 5.50" Diameter = 3.25"
Max voltage = 3000
Max current = .9 amp
Fil voltage = 6
Fil current = 10 amps
Amateur Service Newsletter AS-28 (The Stanley Steamer):
