4C200

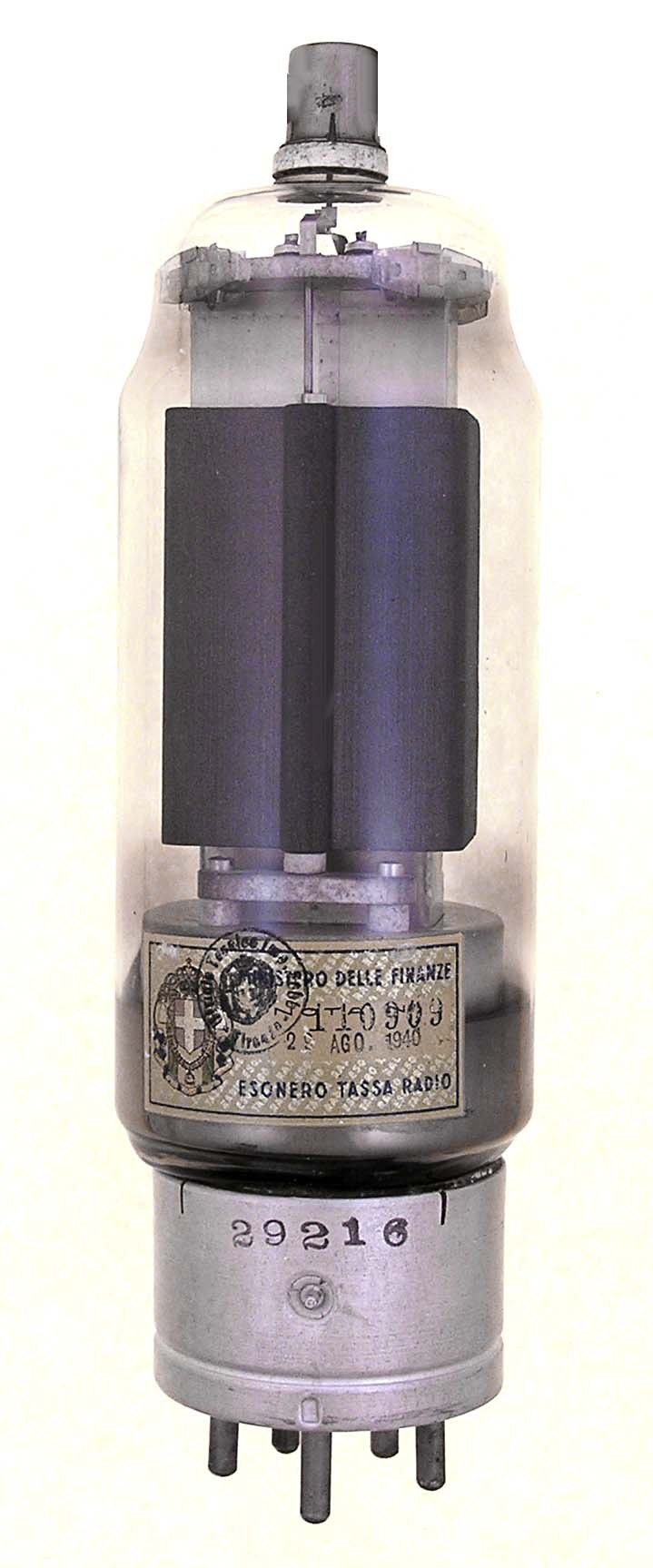

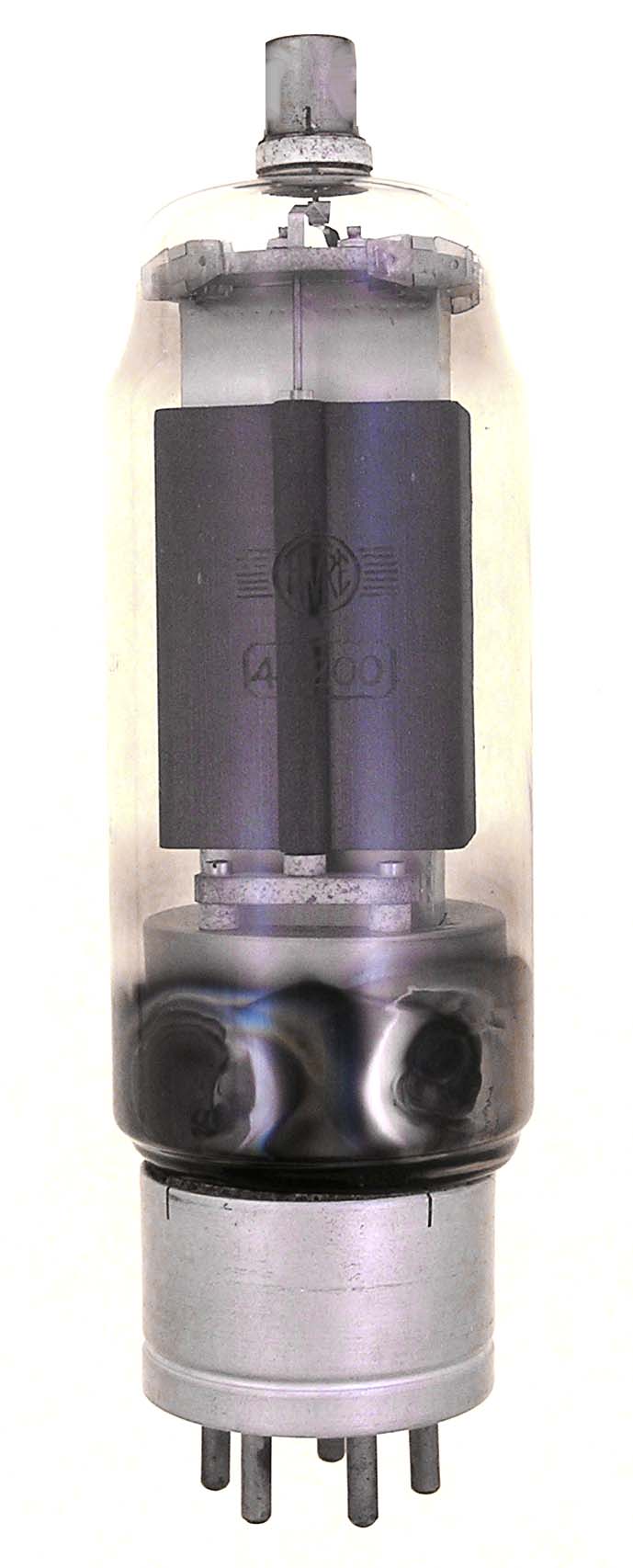

The 4C200 is a 200 watt tetrode with a maximum frequency of 15 MHz for full output built by FIVRE for the Italian military in WWII. This type has 5 base pins.

Length = 9.00" Diameter = 2.50"
Max voltage = 2000
Max current = 300 ma
Fil voltage = 12
Fil current = 6 amps         GOTO INDEX
