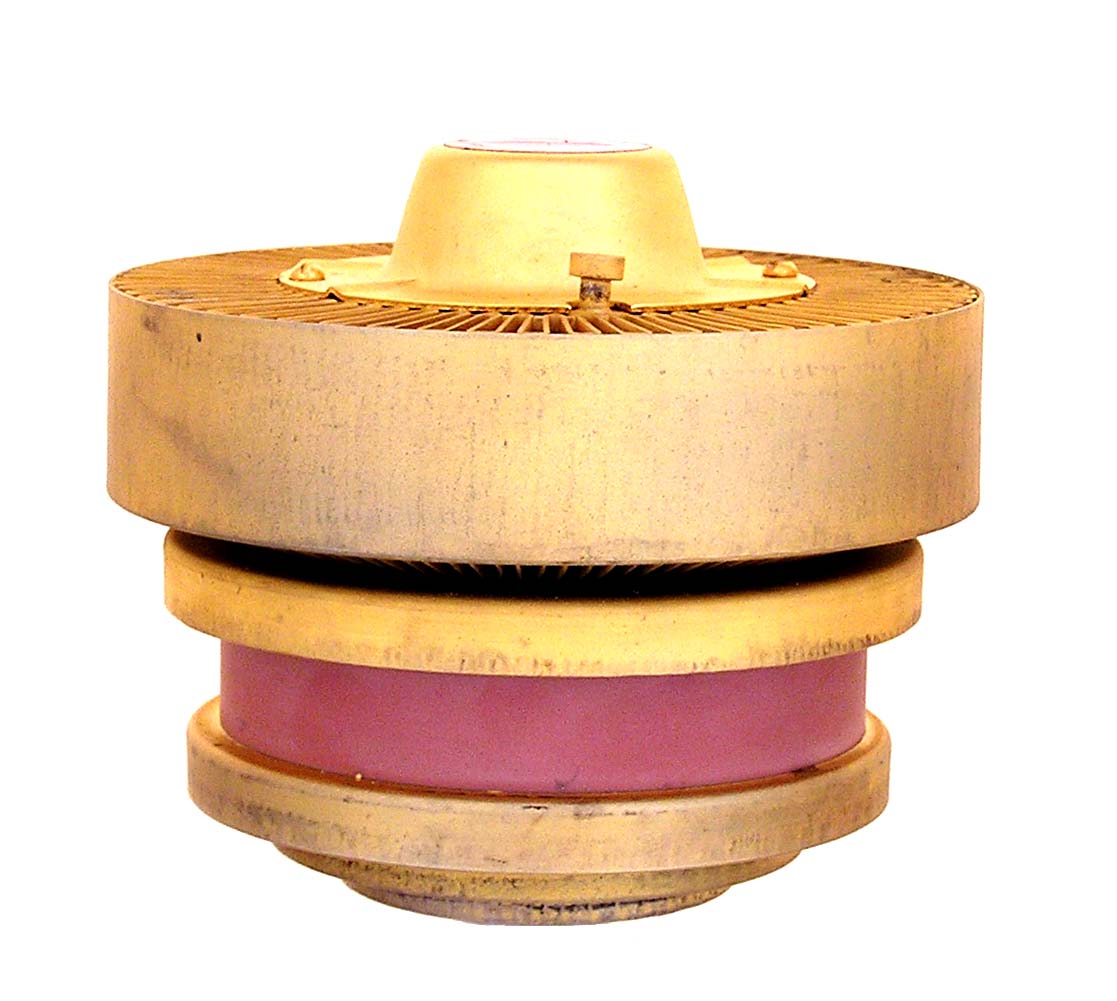

4665

The 4665 is a forced air cooled ceramic/metal tetrode designed for pulsed amplifier service to 1215 MHz. It is capable of 65 KW pulsed output.

Length = 3.24" Diameter = 3.72"
Max voltage = 5000
Max current = 17.3 amps peak
Fil voltage = 5.5 to 5.8
Fil current = 17.3 amps         GOTO INDEX
