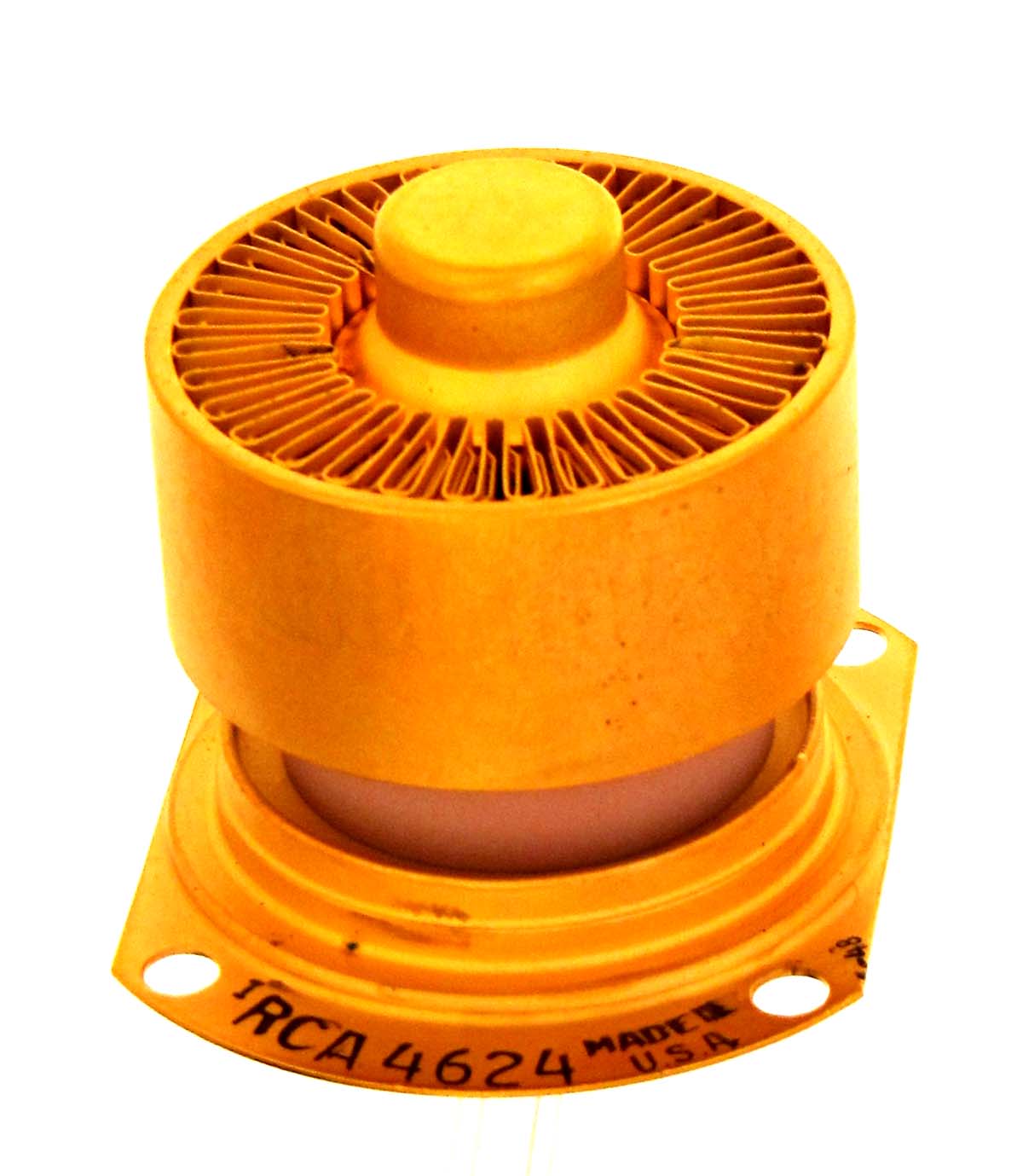

4624

The 4624 is a 400 watt tetrode made by RCA that is similar to the 4626 that is liquid cooled. Maximum frequency is 500 MHz. This tube contains an internal 600 pF screen bypass.

Length = 2.13" Diameter = 1.63"
Max voltage = 2200
Max current = 375 ma
Fil voltage = 6.3
Fil current = 3.5 amps         GOTO INDEX
