460

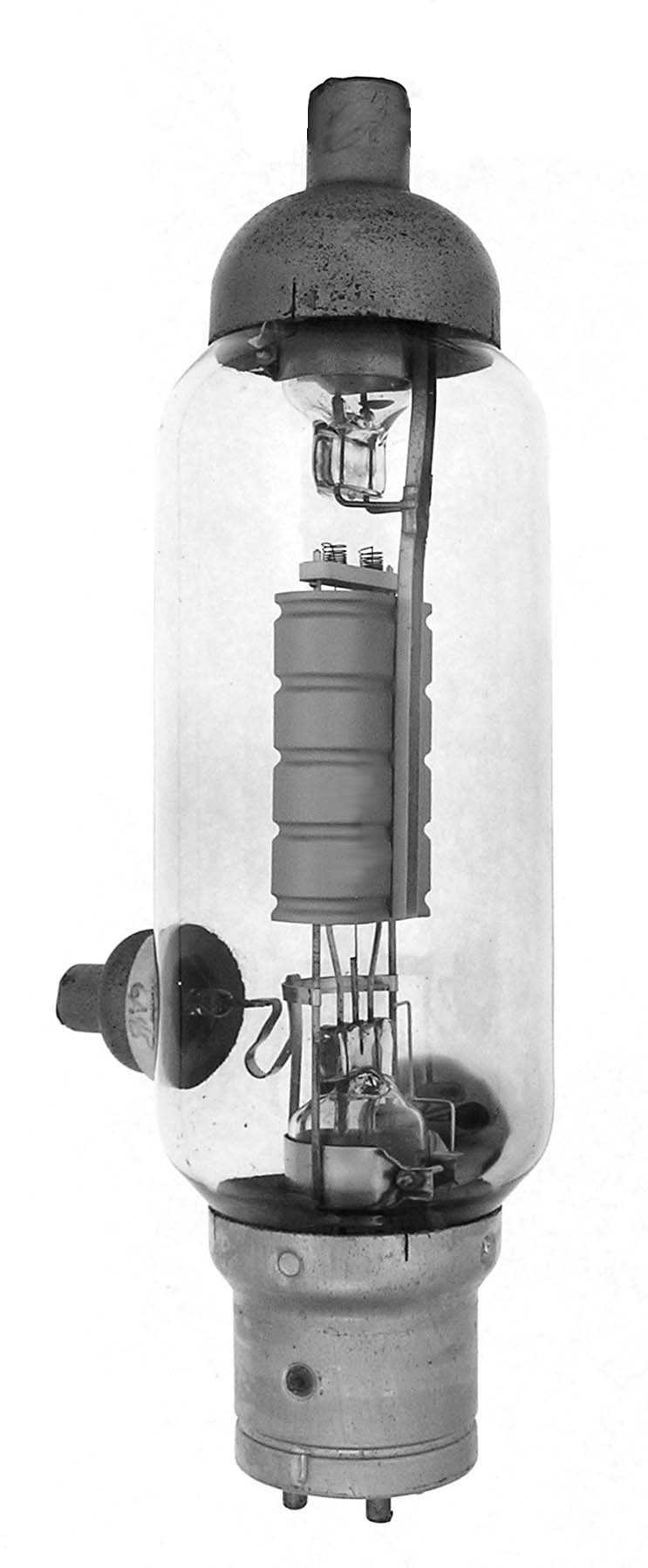

The 460 is a 150 watt triode with a mu of 18 and a maximum frequency for full ratings of 30 MHz and usable above 50 MHz. Mostly used in RF heating applications.

Length = 10.75" Diameter = 2.75" (LESS GRID PIN)
Max voltage = 3000
Max current = 200 ma
Fil voltage = 10
Fil current = 3.85 amps         GOTO INDEX
