450TL

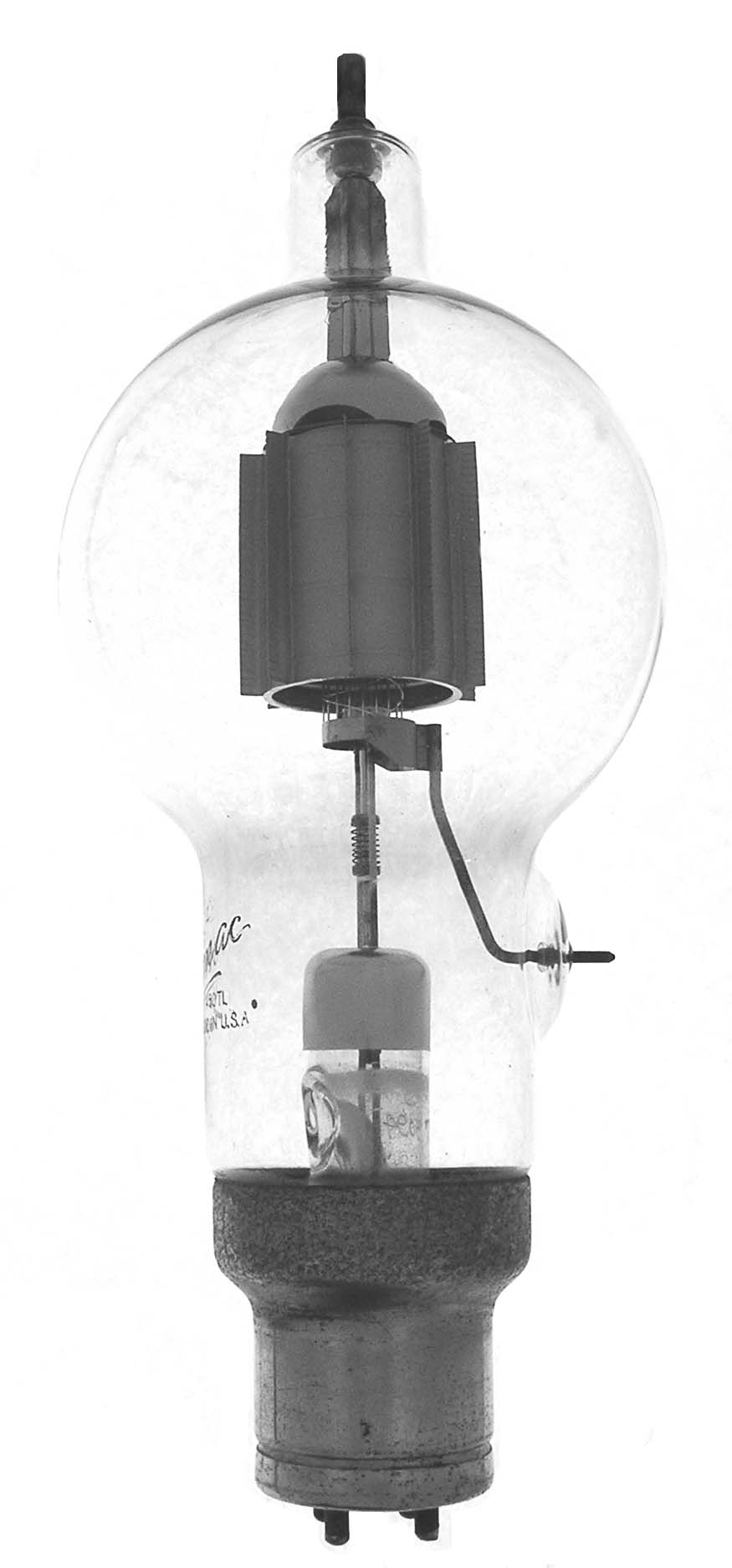

The 450TL is a 450 watt triode with a mu of 18 and is useable at full power to 40 MHz. It originated from the 450T "LO" varient. Early versions up through 1944, had hemispherical anode caps and a grid pin horizontally through the envelope like the 450T. The more common types had the grid exiting the envelope at an angle as in the second example from 1945.

Length = 12.62" Diameter = 5.13"
Max voltage = 6000
Max current = 600 ma
Fil voltage = 7.5
Fil current = 12 amps
Data sheet:
