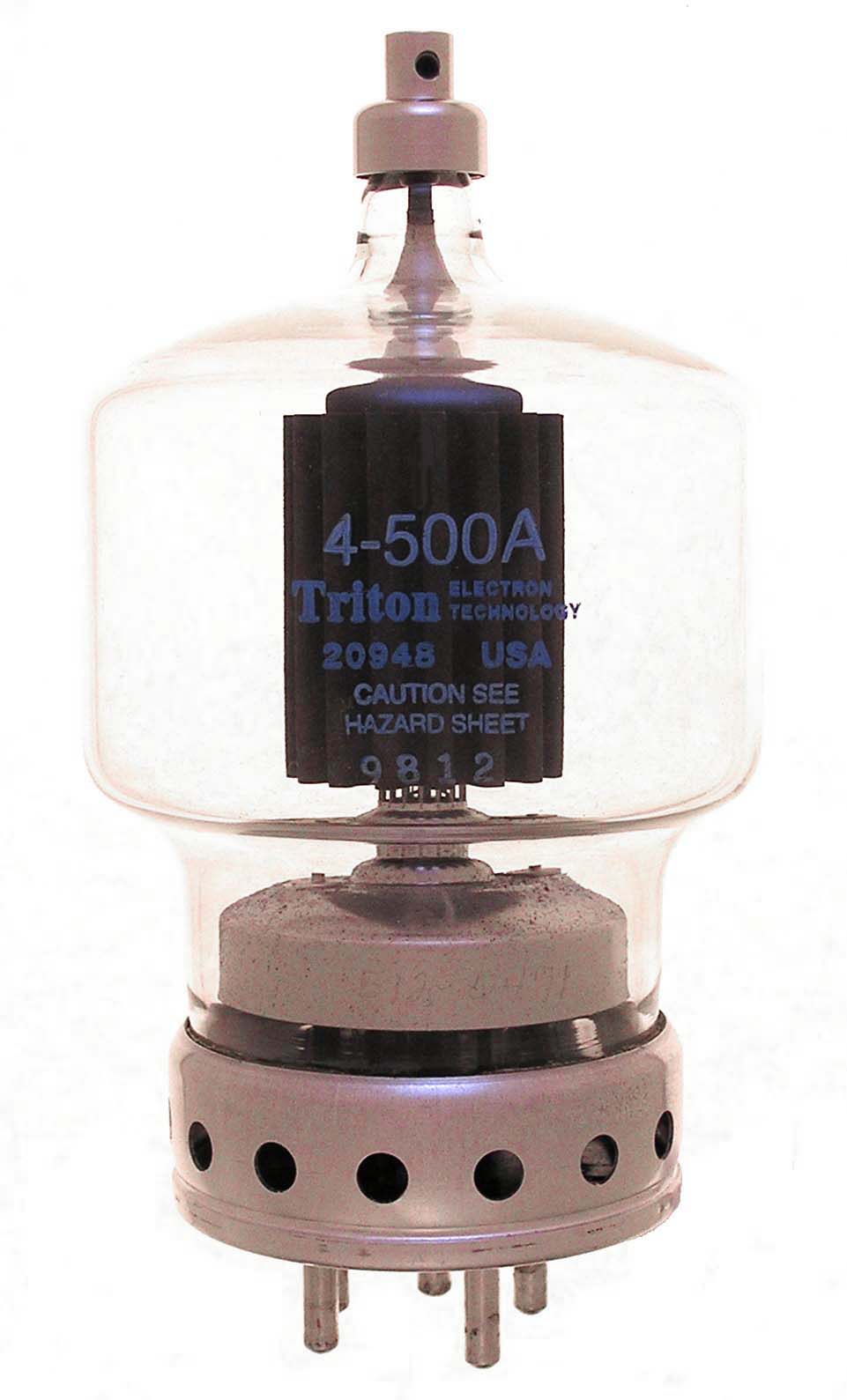

4-500A

The 4-500A is a 500 watt dissipation tetrode. The usable frequency for maximum ratings is 110 MHz. The 4-500A was designed for long life performance.



Length = 7.00" Diameter = 3.56"
Max voltage = 4000
Max current = 450 ma
Fil voltage = 10
Fil current = 10.2 amps
Data sheet:
