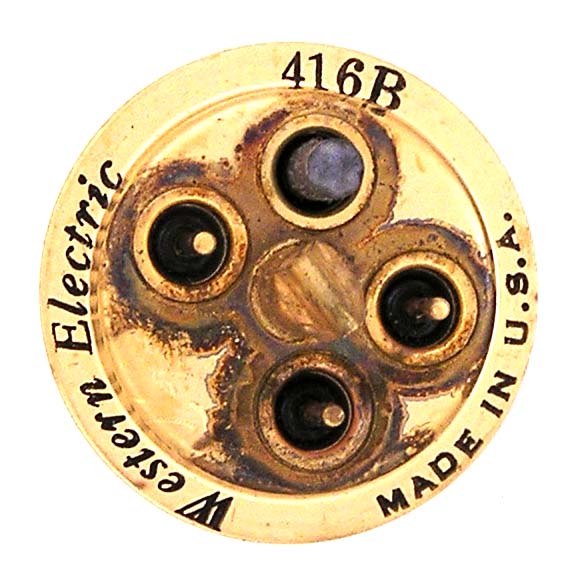

WE416B

The WE416B OR 6280 is a planar triode with a mu of 200 designed for microwave amplifier applications to 4 GHz. It is an uprated 416A with higher output. It was used in low noise preamplifiers as well as transmitters.

Length = 1.75" Diameter = 1.03"
Max voltage = 200
Max current = 30 ma
Fil voltage = 6.1
Fil current = 1.17 amps         GOTO INDEX
