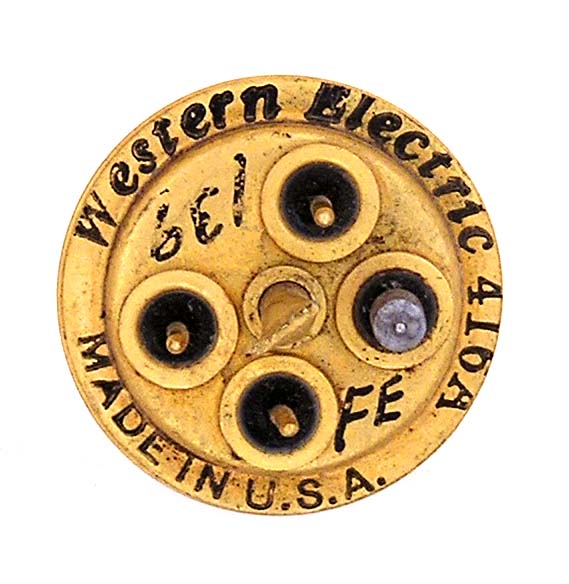

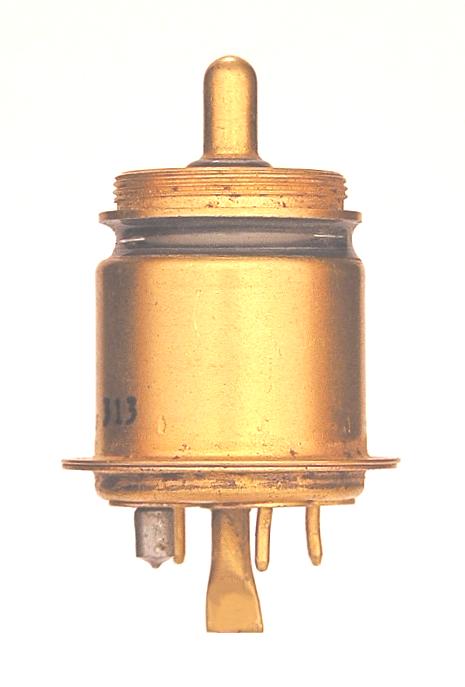

The WE416A is a planar triode with a mu of 200 designed for microwave amplifier applications to 4 GHz. Used in transmitters as well as low noise preamplifiers.
Length = 1.75" Diameter = 1.03"
Max voltage = 200
Max current = 30 ma
Fil voltage = 6.1
Fil current = 1.17 amps GOTO INDEX
