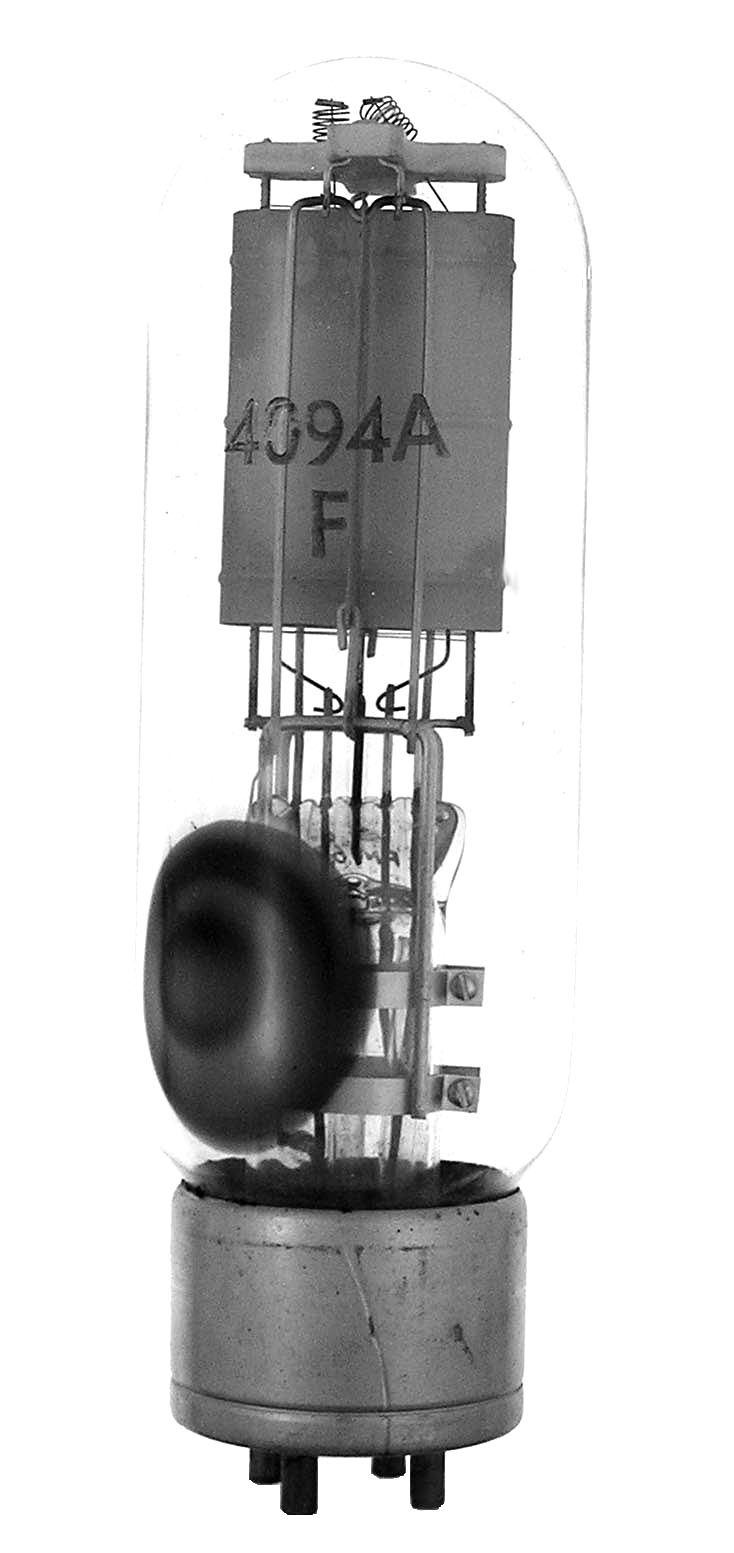

4094-A

The 4094-A is a general purpose triode with a mu of 37 and a maximum frequency for full power of 6 MHz. This tube is European and was first introduced about 1938.

Length = 7.37" Diameter = 2.25"
Max voltage = 1250
Max current = 150 ma
Fil voltage = 10
Fil current = 3.25 amps         GOTO INDEX
