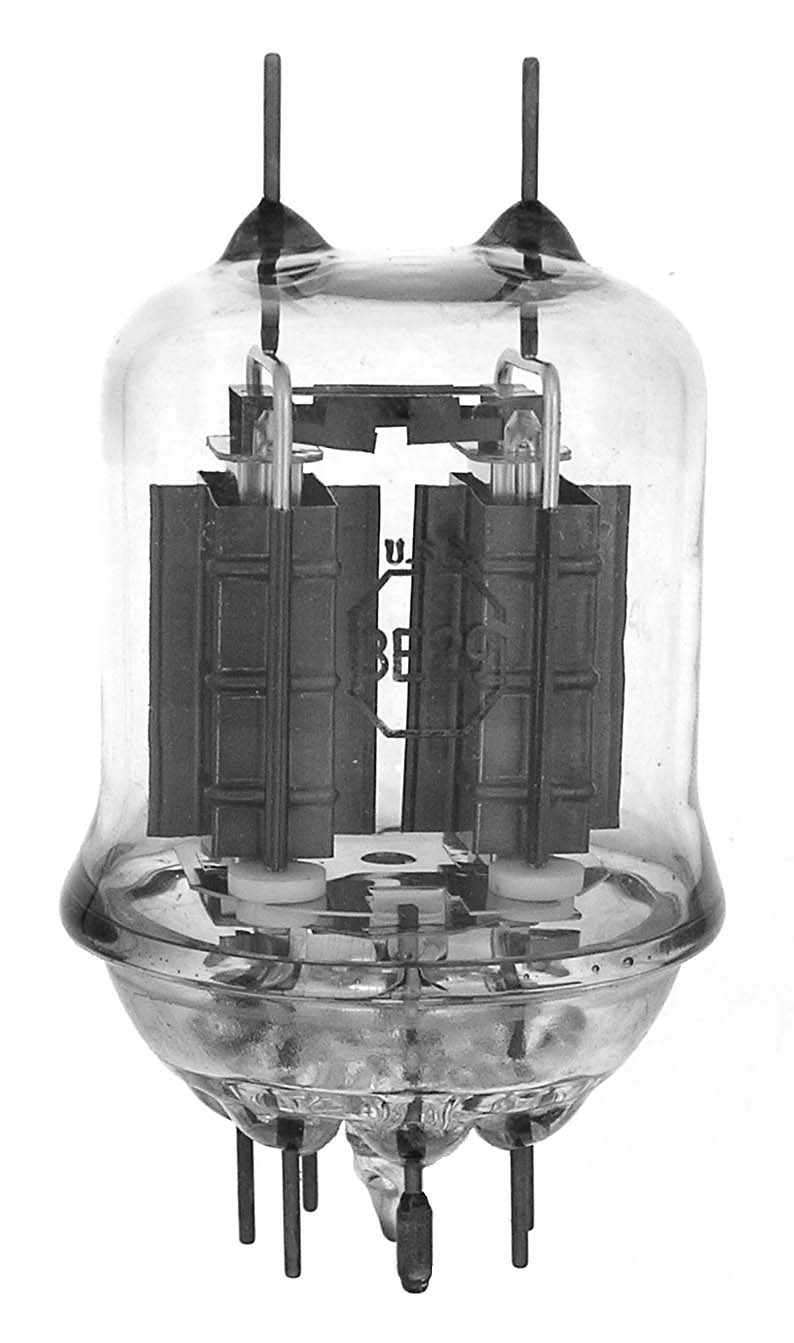

3E29

The 3E29 is a 40 watt dissipation dual pentode designed for pulse applications. This is a pulse version of the 829B and was used in several RADAR units in WWII.

Length = 4.31" Diameter = 2.37"
Max voltage = 5000 (pulse)
Max current = 5 amps (pulse)
Fil voltage = 6.3 or 12.6
Fil current = 2.25 or 1.125 amps         GOTO INDEX
