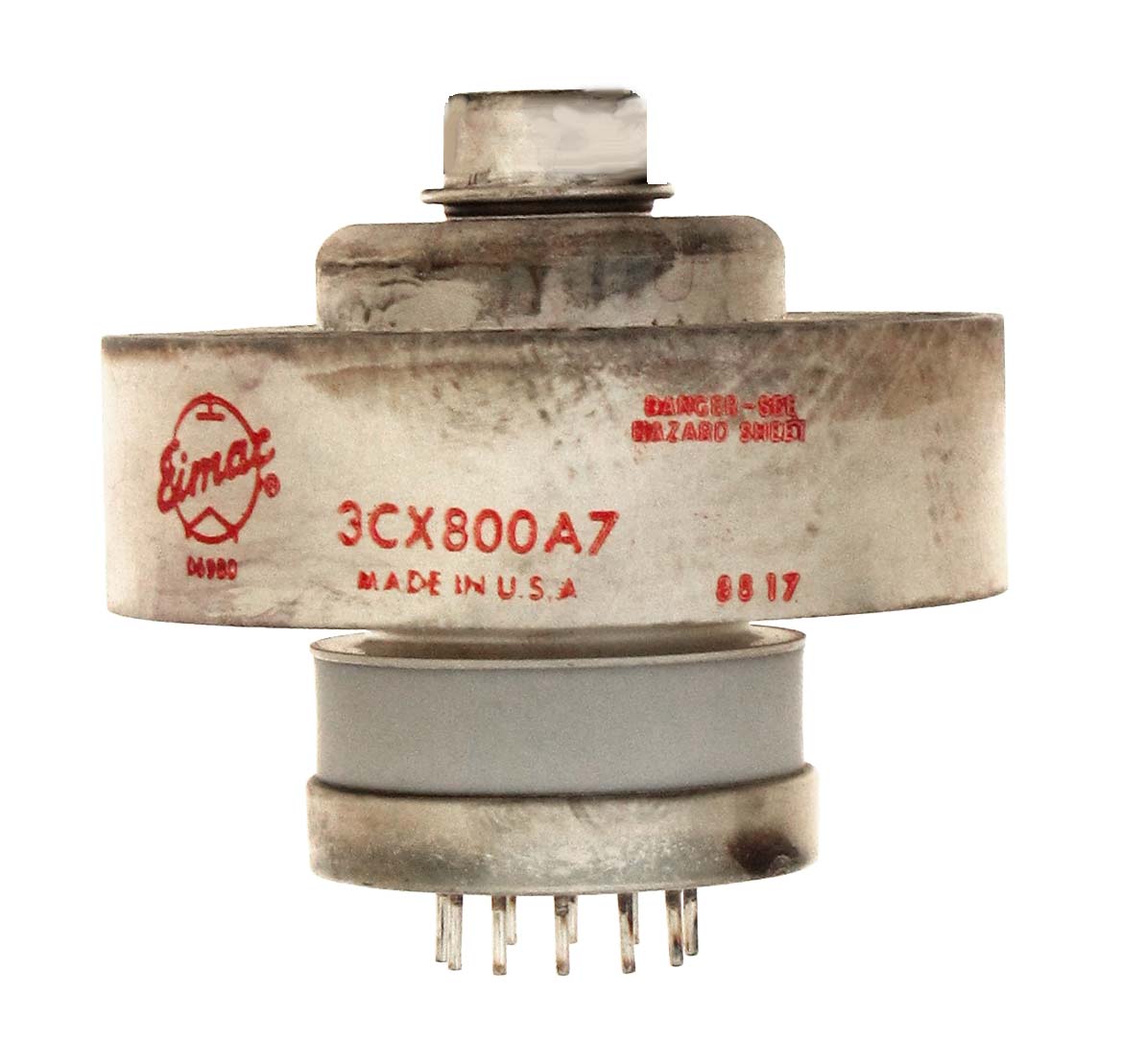

3CX800A7

The 3CX800A7 is an 800 watt dissipation triode with a mu of 200 that requires forced air cooling. Full ratings to 350 MHz.

Length = 2.52" Diameter = 2.53"
Max voltage = 2250 (3500 pulse)
Max current = .6 amp
Fil voltage = 13.5
Fil current = 1.5 amps         GOTO INDEX
