3CX1500D3

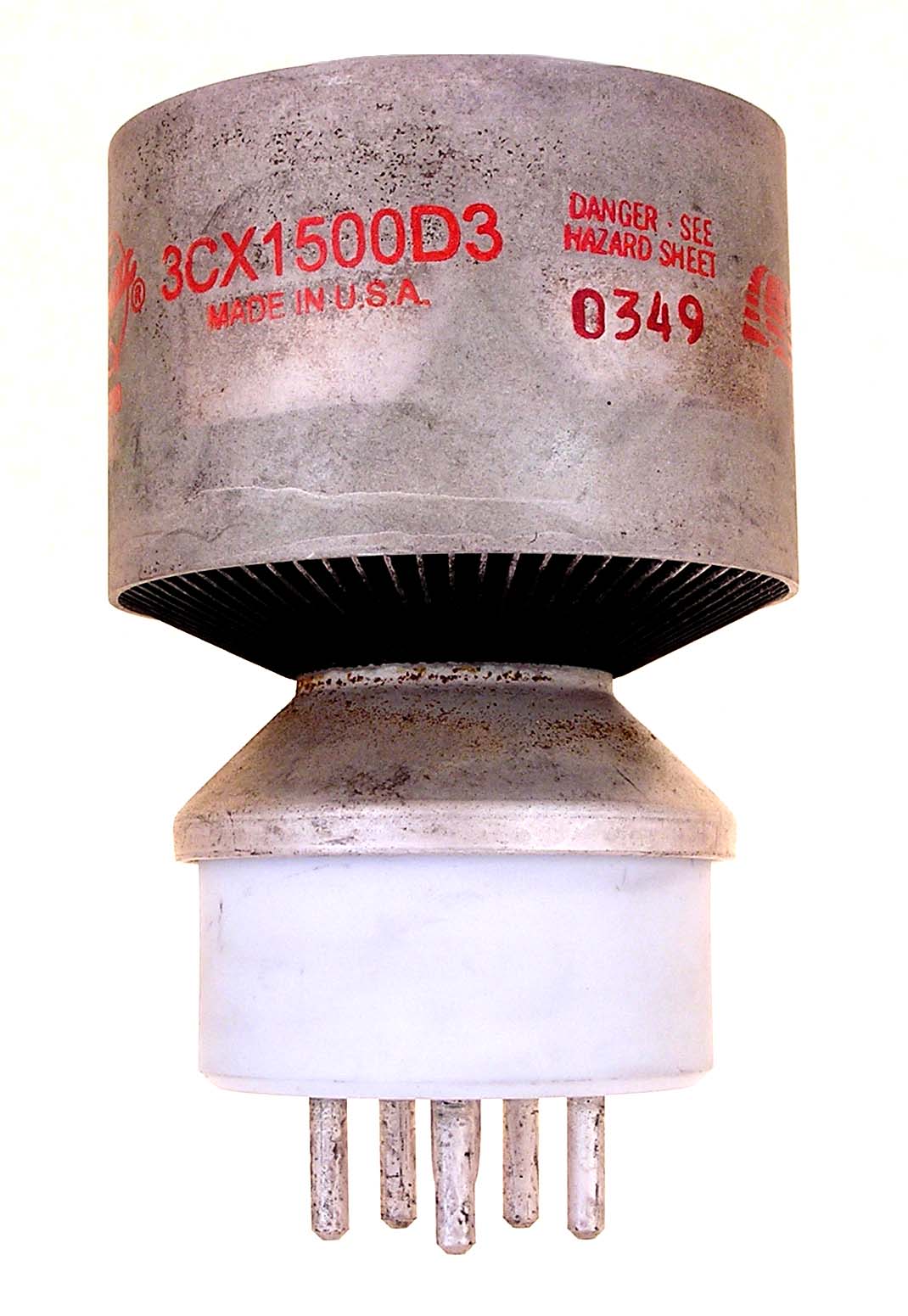

The 3CX1500D3 is a 1500 watt triode with a mu of 24 and a maximum frequency of 110 MHz. It was designed for industrial heating.

Length = 5.63" Diameter = 3.42"
Max voltage = 7000
Max current = 800 ma
Fil voltage = 6.3
Fil current = 25 amps
Data sheet:
