3CX1000A7

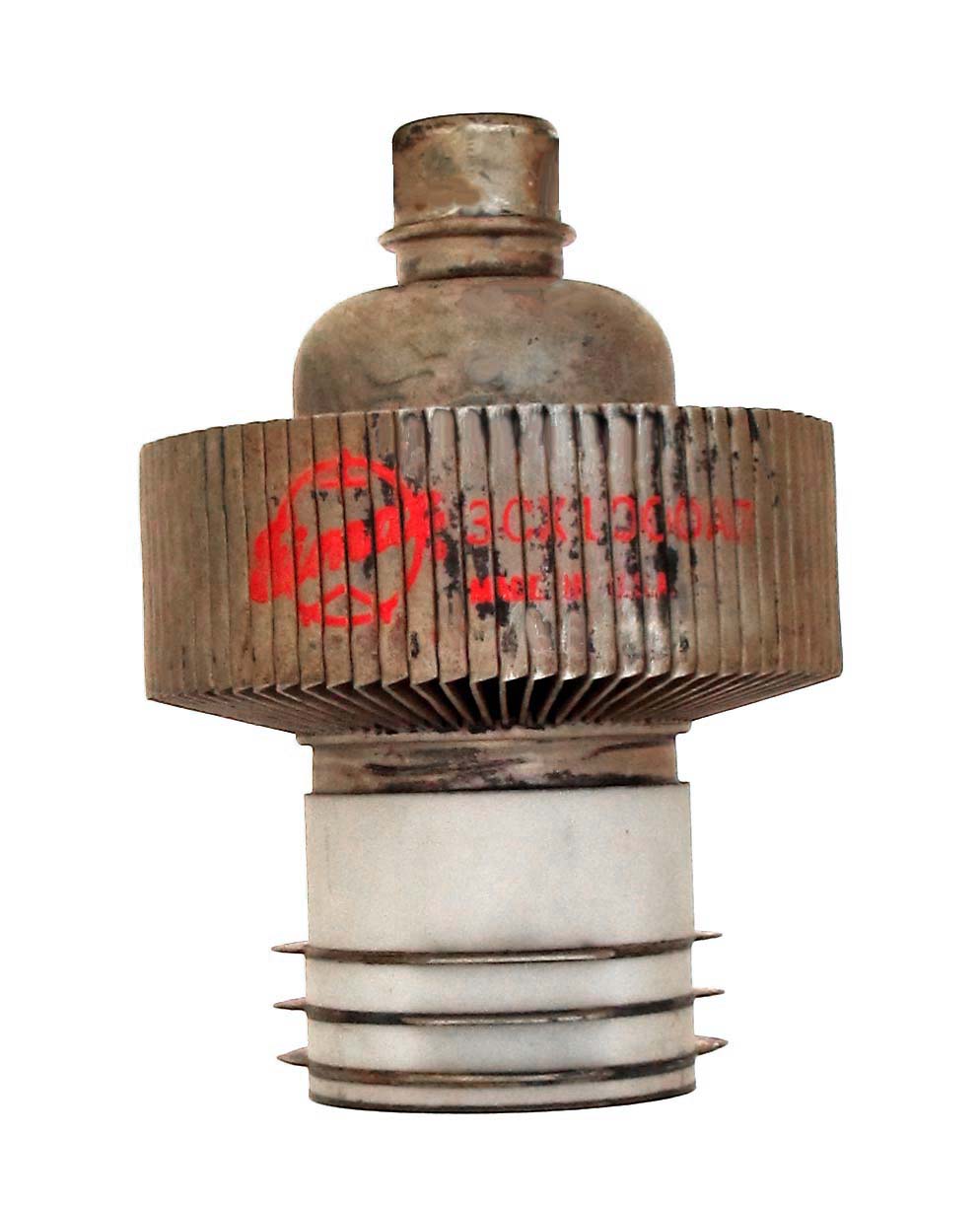

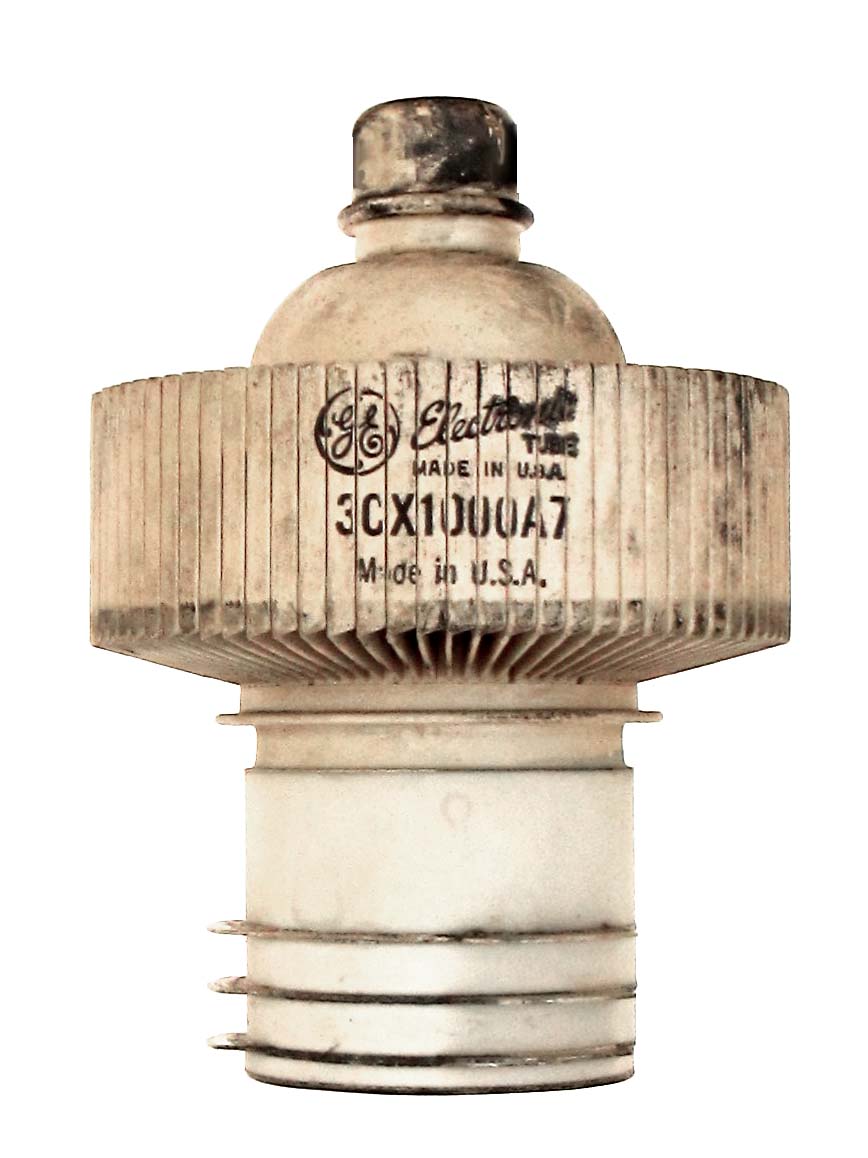

The 3CX1000A7 or 8283 is a 1000 watt, forced air cooled, triode with a mu of 200 and full output to 220 MHz made by EIMAC. The second example was made by General Electric.

Length = 4.80" Diameter = 3.38"
Max voltage = 3500
Max current = 1 amp
Fil voltage = 5
Fil current = 30.5 amps
Data sheet:
