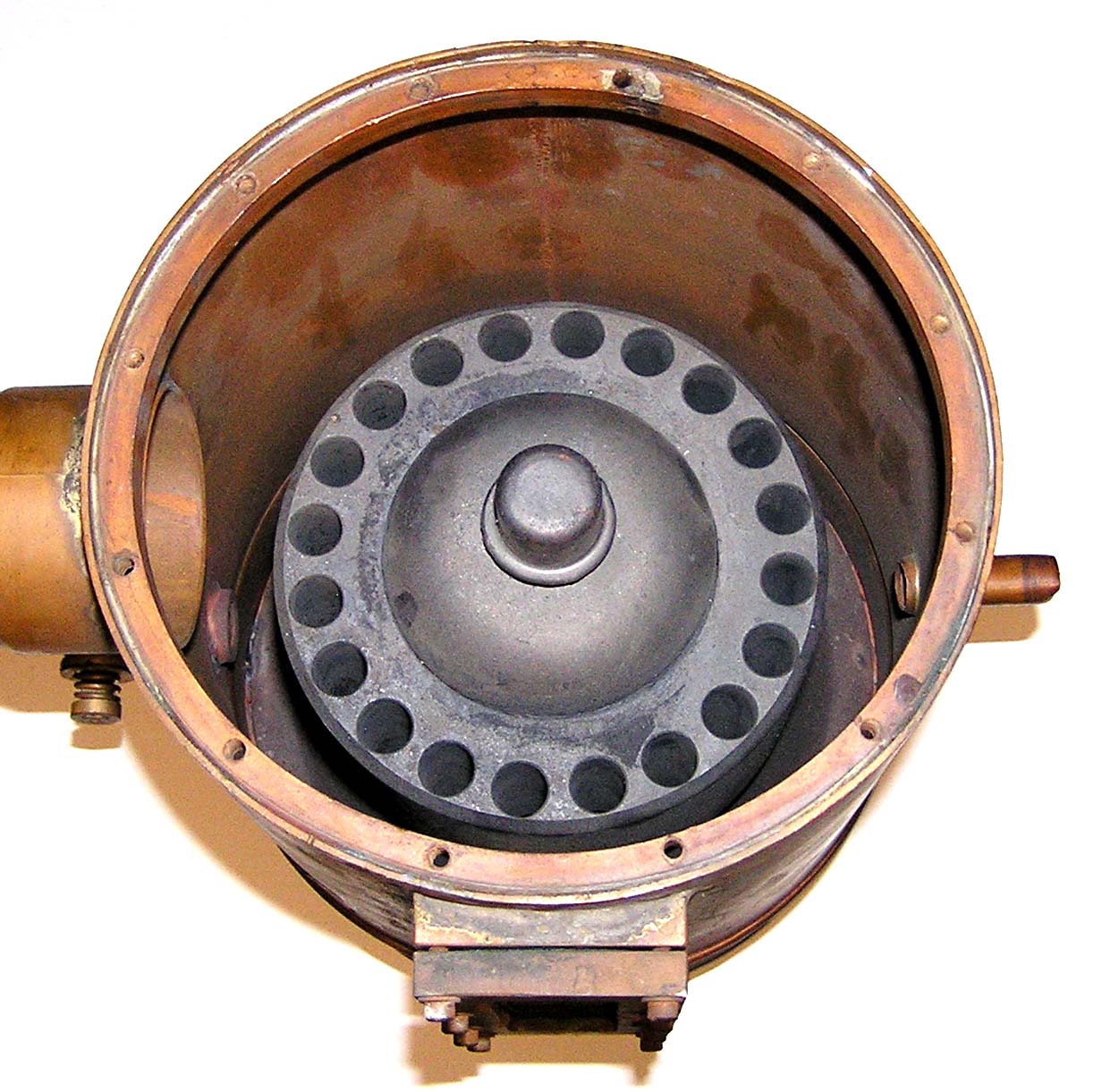

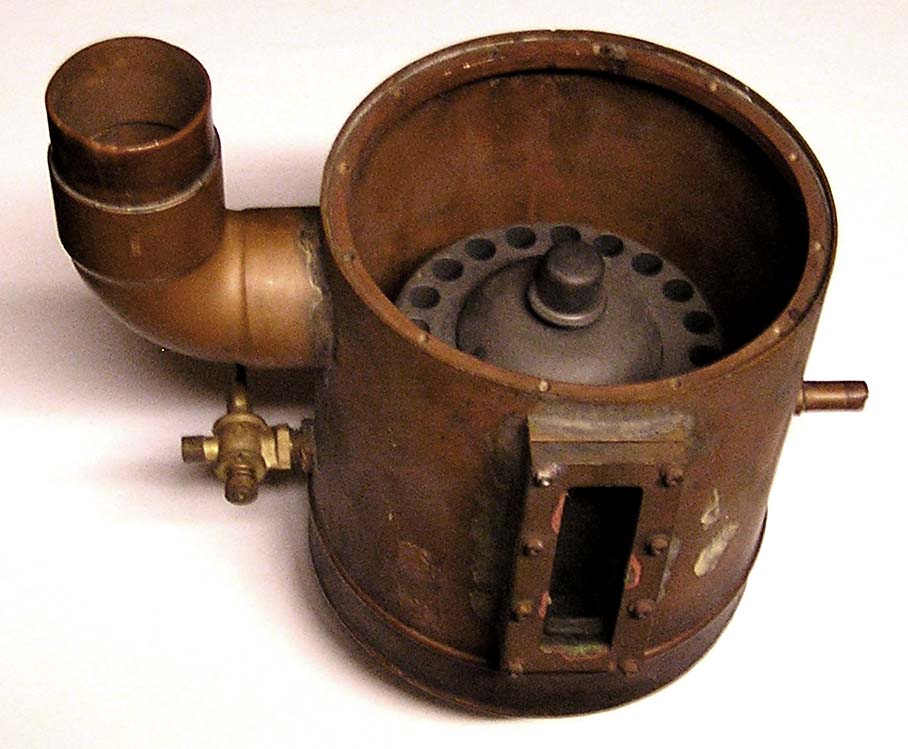

This triode I believe is a prototype that led to the 3CV30000 series of tubes. The boiler seems to have been built intergal to the plate structure. The tube is about the size of a 5000 watt unit with vertical holes in the anode.

Length = 8.50" Diameter = 4.75"
Max voltage =
Max current =
Fil voltage =
Fil current =         GOTO INDEX
