3C70

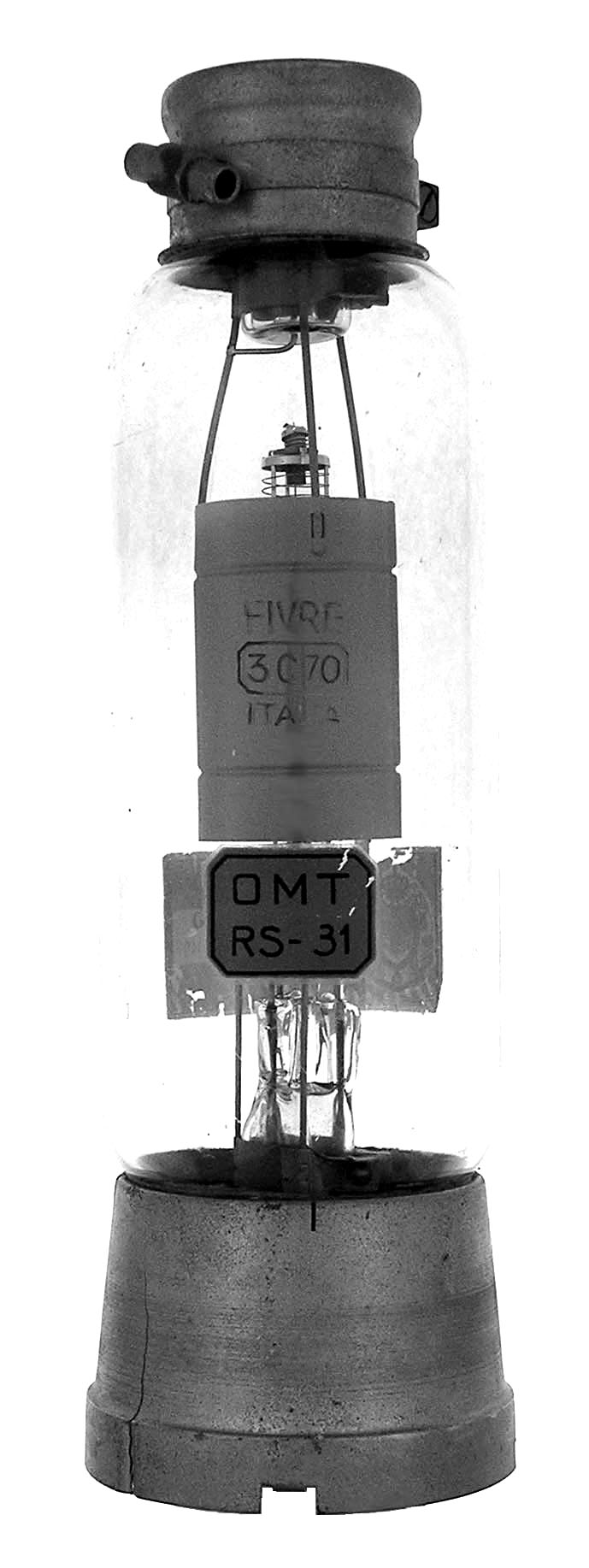

The 3C70 which is an Italian version of the RS31 is a 65 watt triode with a mu of 33. This example was made by FIVRE for the Italian military.

Length = 8.13" Diameter = 2.50"
Max voltage = 1600
Max current = 77 ma
Fil voltage = 10
Fil current = 4.8 amps         GOTO INDEX
