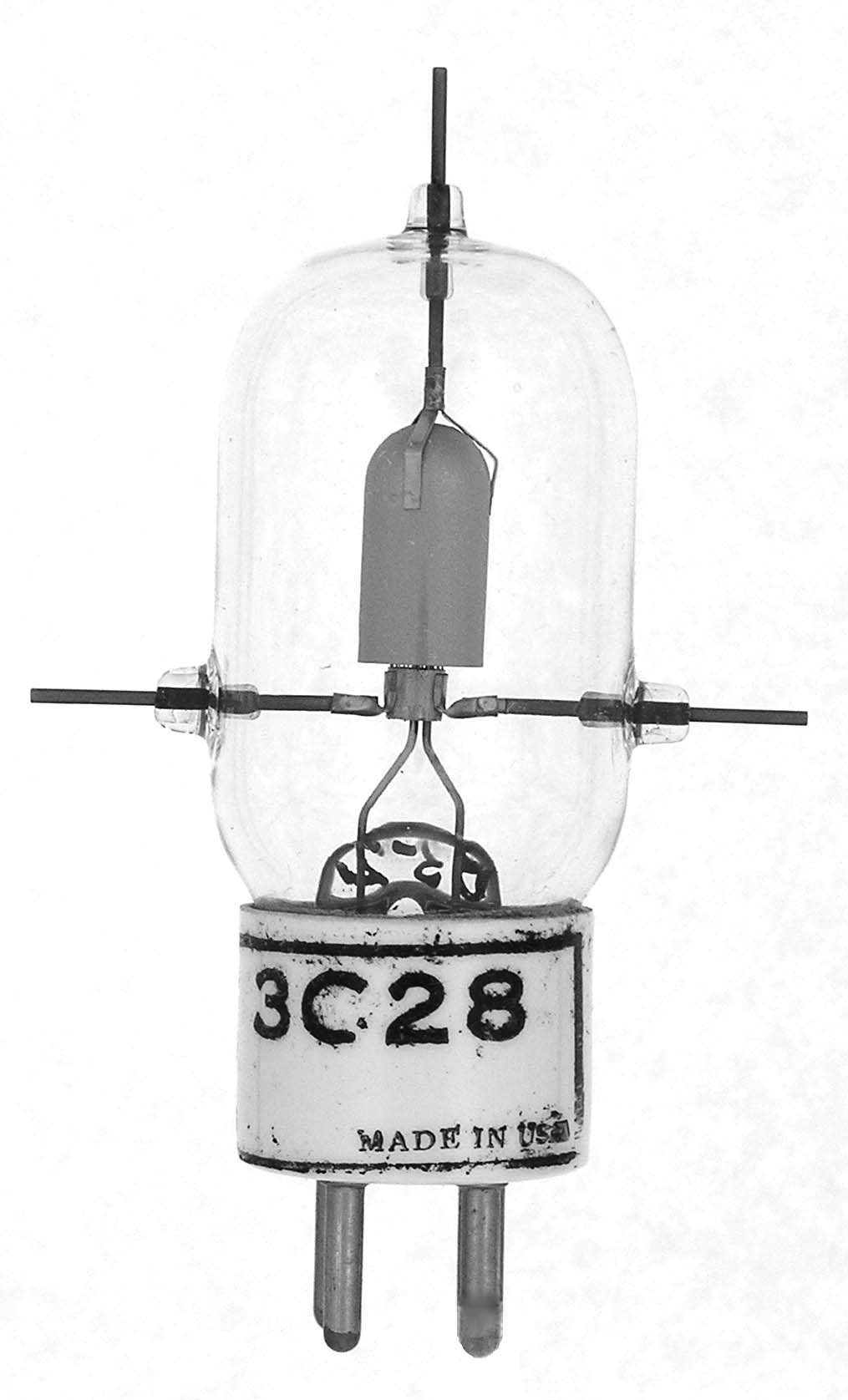

3C28

The 3C28 is a 25 watt general purpose triode with a mu of 23. It is a 3C24 with double grid pins. Maximum ratings to 100 MHz.

Length = 4.38" Diameter = 1.44"
Max voltage = 2000 VDC
Max current = 75 ma
Fil voltage = 6.3 volts
Fil current = 3 amps         GOTO INDEX
