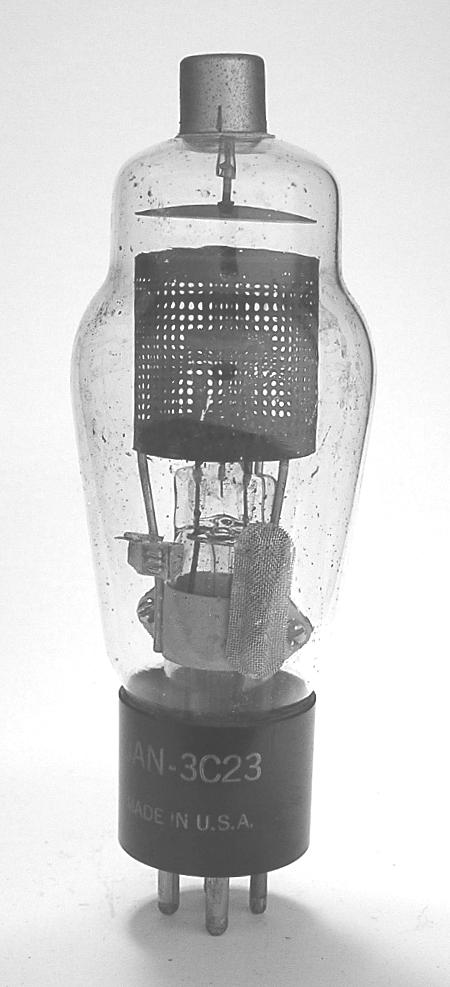

3C23

The 3C23 is a mercury vapor triode thyratron designed for control applications.

Length = 6.12" Diameter = 2.06"
Max voltage = 1250 forward, 1250 inverse
Max current = 6 peak amps
Fil voltage = 2.5
Fil current = 6 amps         GOTO INDEX
