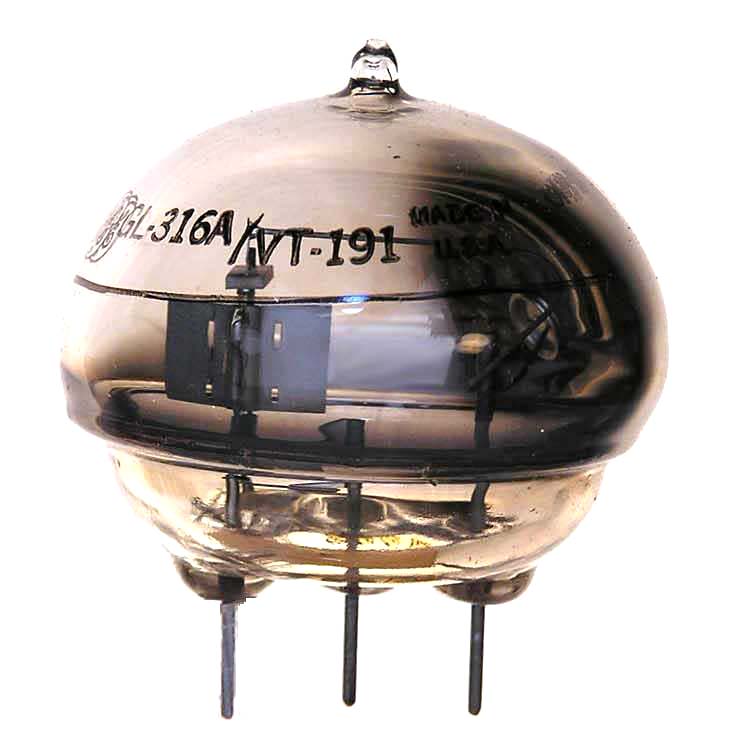

316A

The 316A is a 30 watt triode with a mu of 6.5 and an upper frequency limit of 750 MHz. This "doorknob" tube was used in WWII radar and IFF equipment.

Length = 2.50" Diameter = 2.25"
Max voltage = 400
Max current = 80 ma
Fil voltage = 2
Fil current = 3.65 amps         GOTO INDEX
