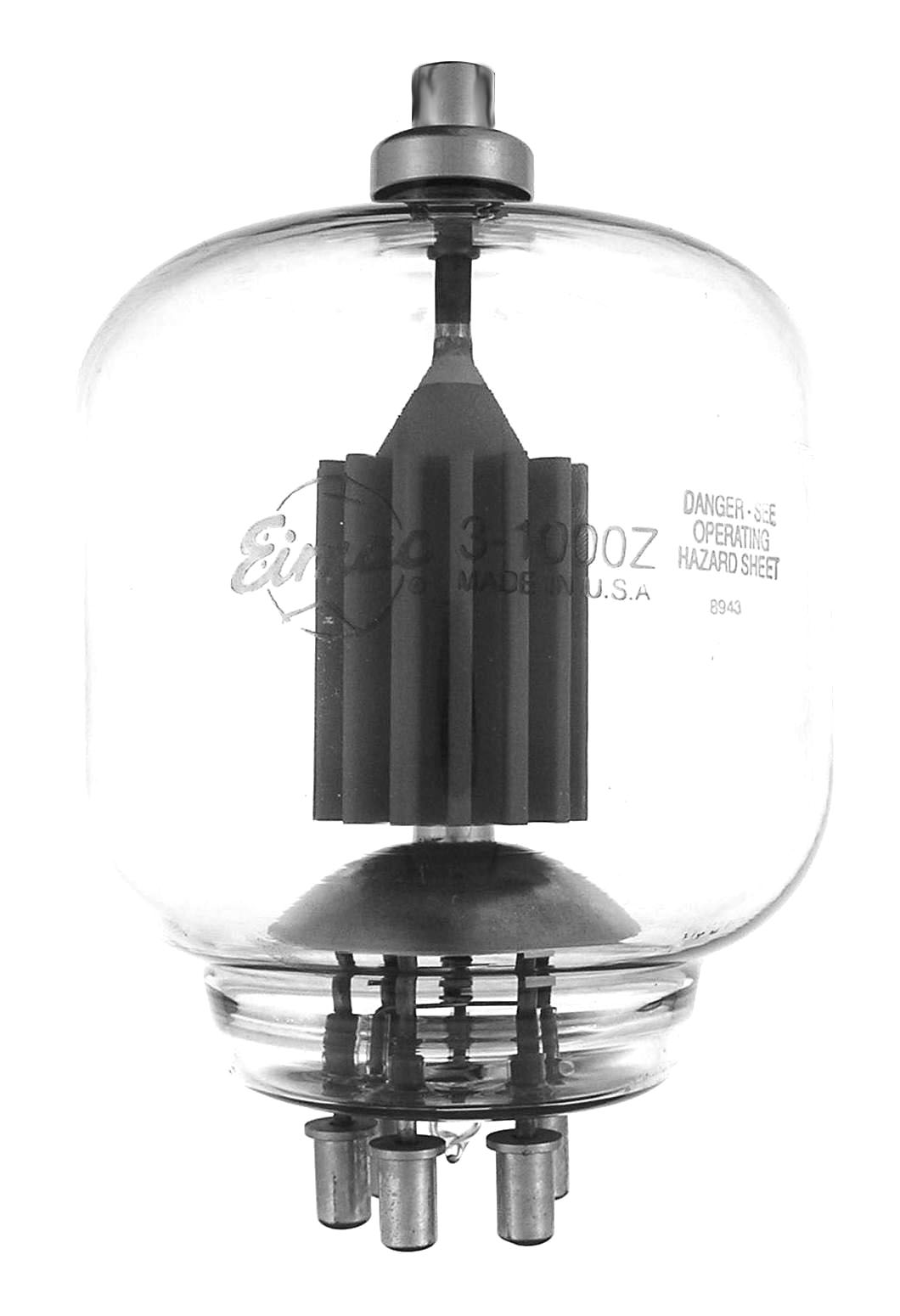

3-1000Z

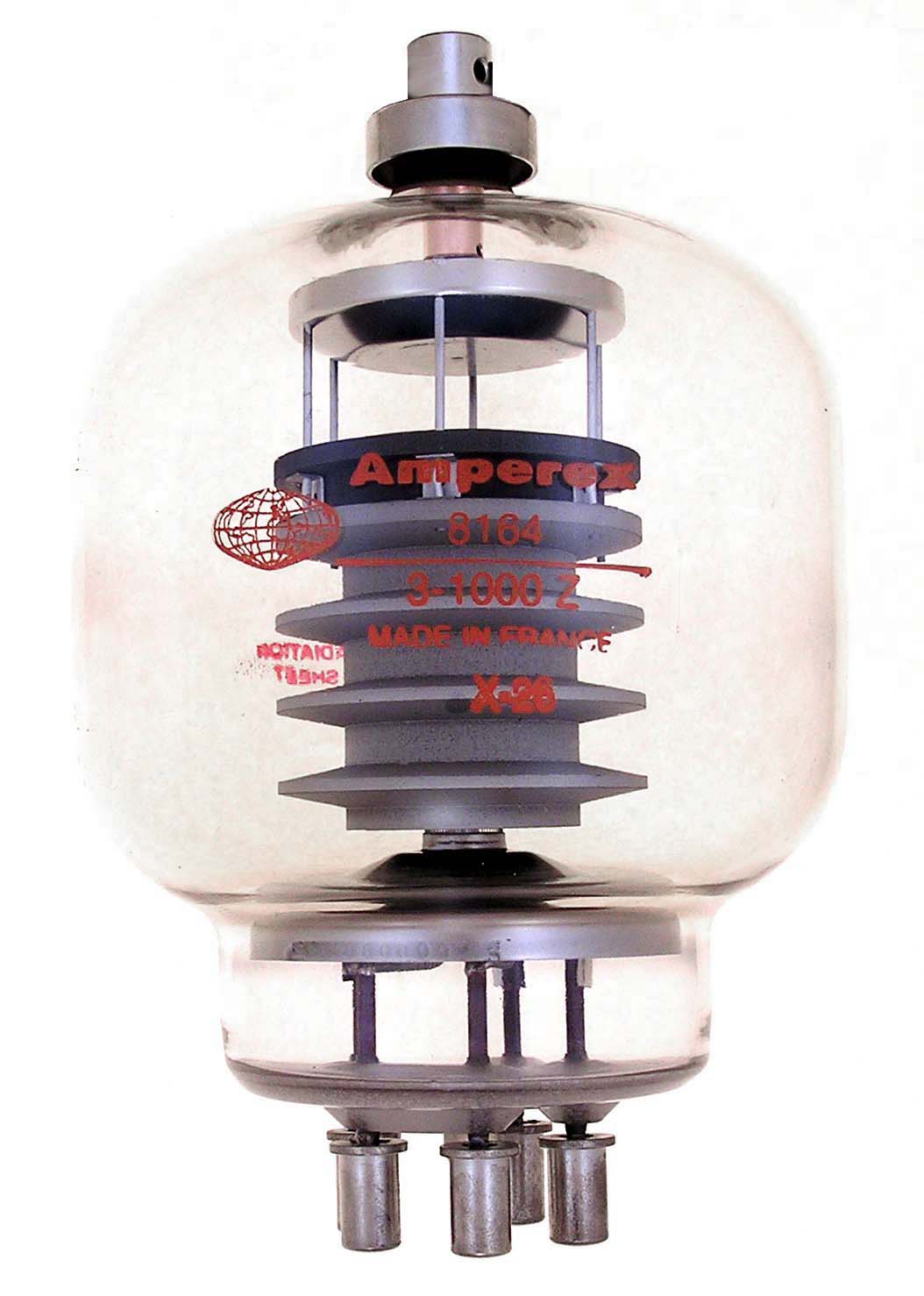

The 3-1000Z or 8164 is a 1000 watt dissipation triode designed for zero bias operation. The usable frequency for maximum ratings is 110 MHz. The second example was made by Amperex using different construction.

Length = 7.88" Diameter = 5.25"
Max voltage = 6000
Max current = 700 ma
Fil voltage = 7.5
Fil current = 21.3 amps
