30

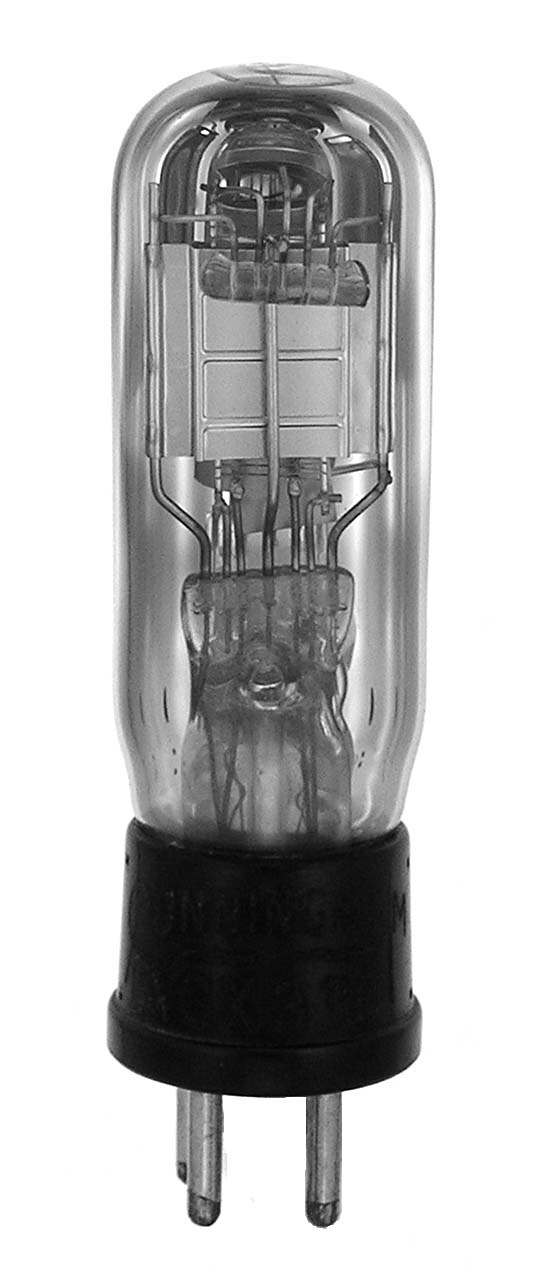

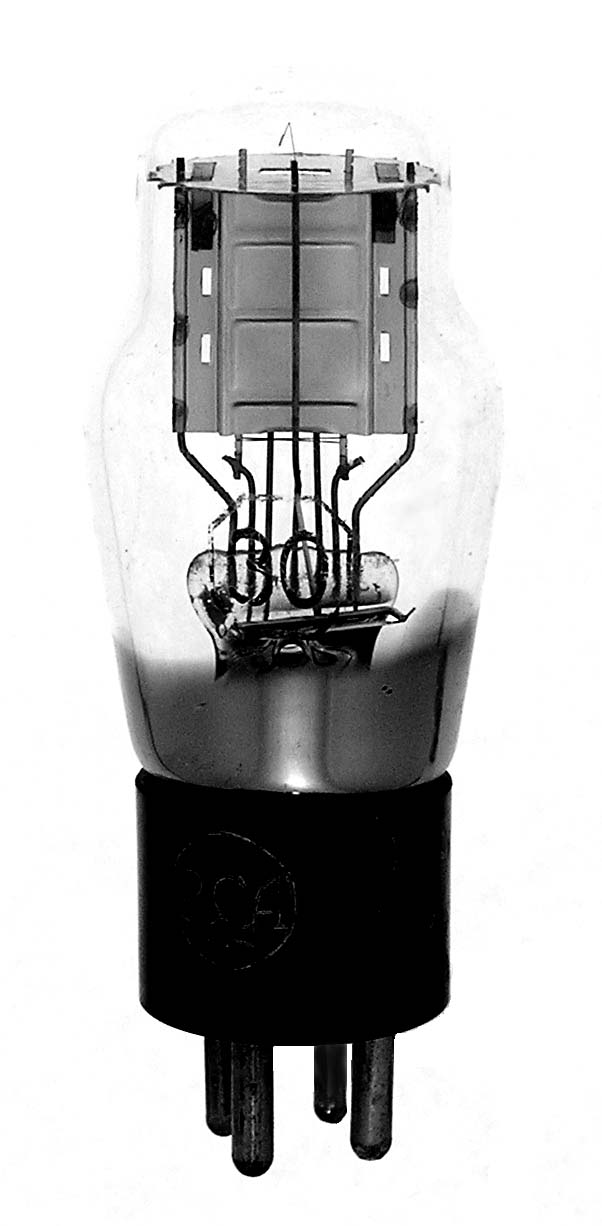

The 30 is a triode with a mu of 9.3. General purpose battery tube used in low power portable transmitters. The shape changed with later versions.

Length = 5.00" Diameter = 1.88"
Max voltage = 180
Max current = 3.1 ma
Fil voltage = 2
Fil current = .06 amps         GOTO INDEX
