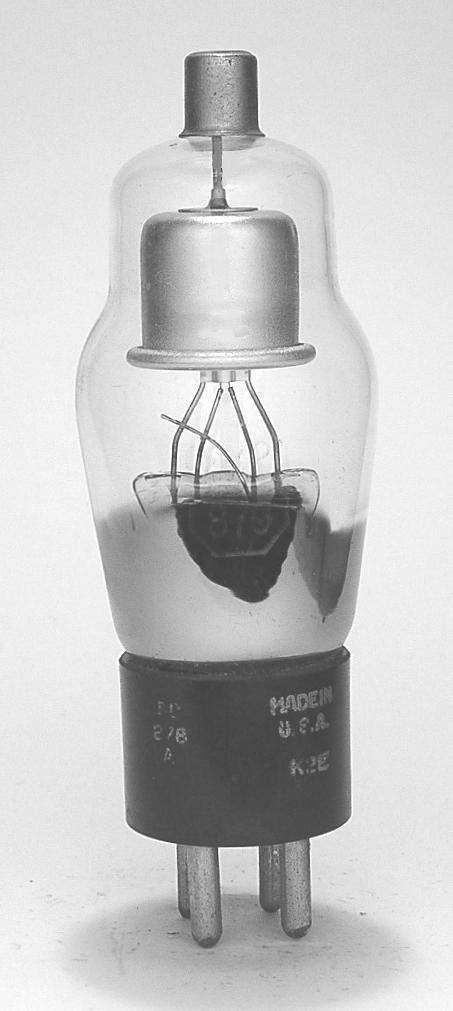

2X2/879

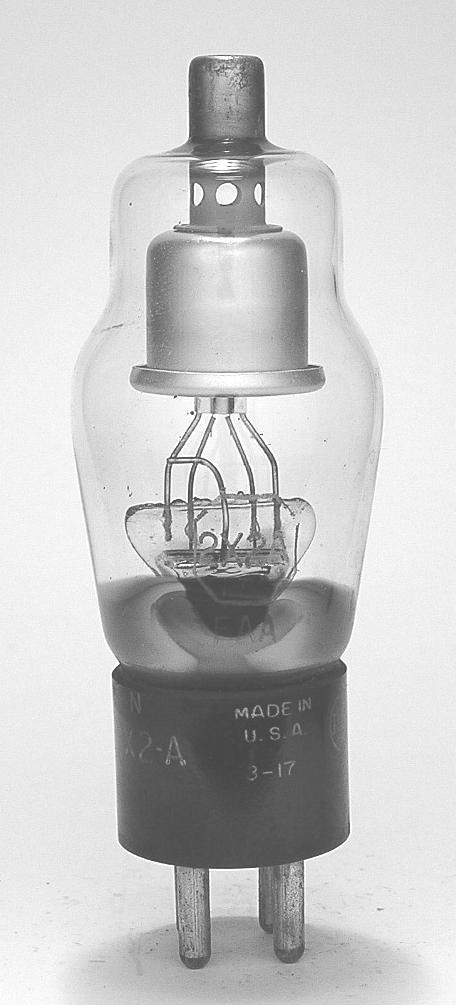

The 2X2/879 is a general purpose rectifier designed for excessive shock and vibration. The 2X2A added a stronger plate support.

Length = 4.53" Diameter = 1.56"
Max voltage = 12500 piv
Max current = 60 ma peak
Fil voltage = 2.5
Fil current = 1.75 amps         GOTO INDEX
