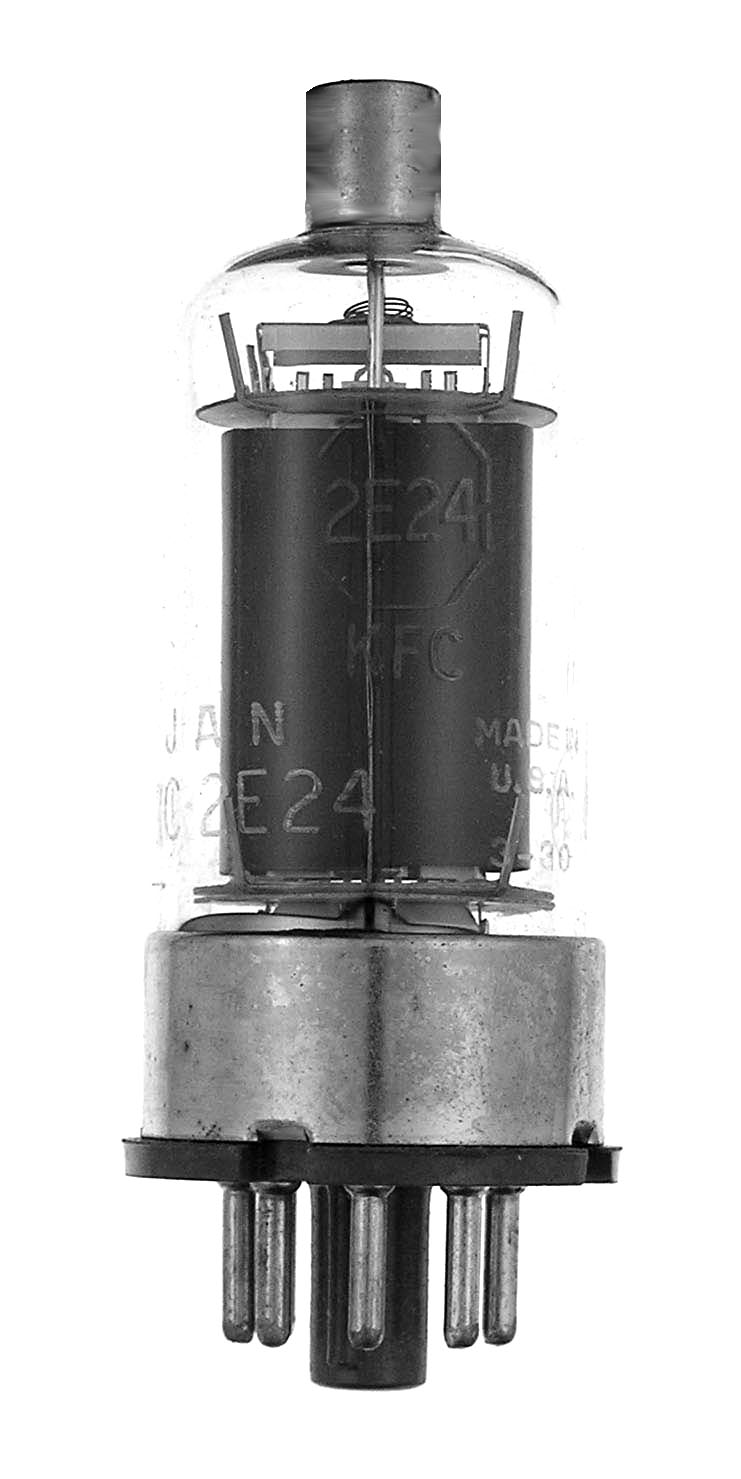

2E24

The 2E24 is a 13.5 watt beam pentode with a quick heating coated filament and with full ratings to 125 MHz and usable to 175 MHz.

Length = 3.66" Diameter = 1.31"
Max voltage = 600
Max current = 85 ma
Fil voltage = 6.3
Fil current = .65 amps         GOTO INDEX
