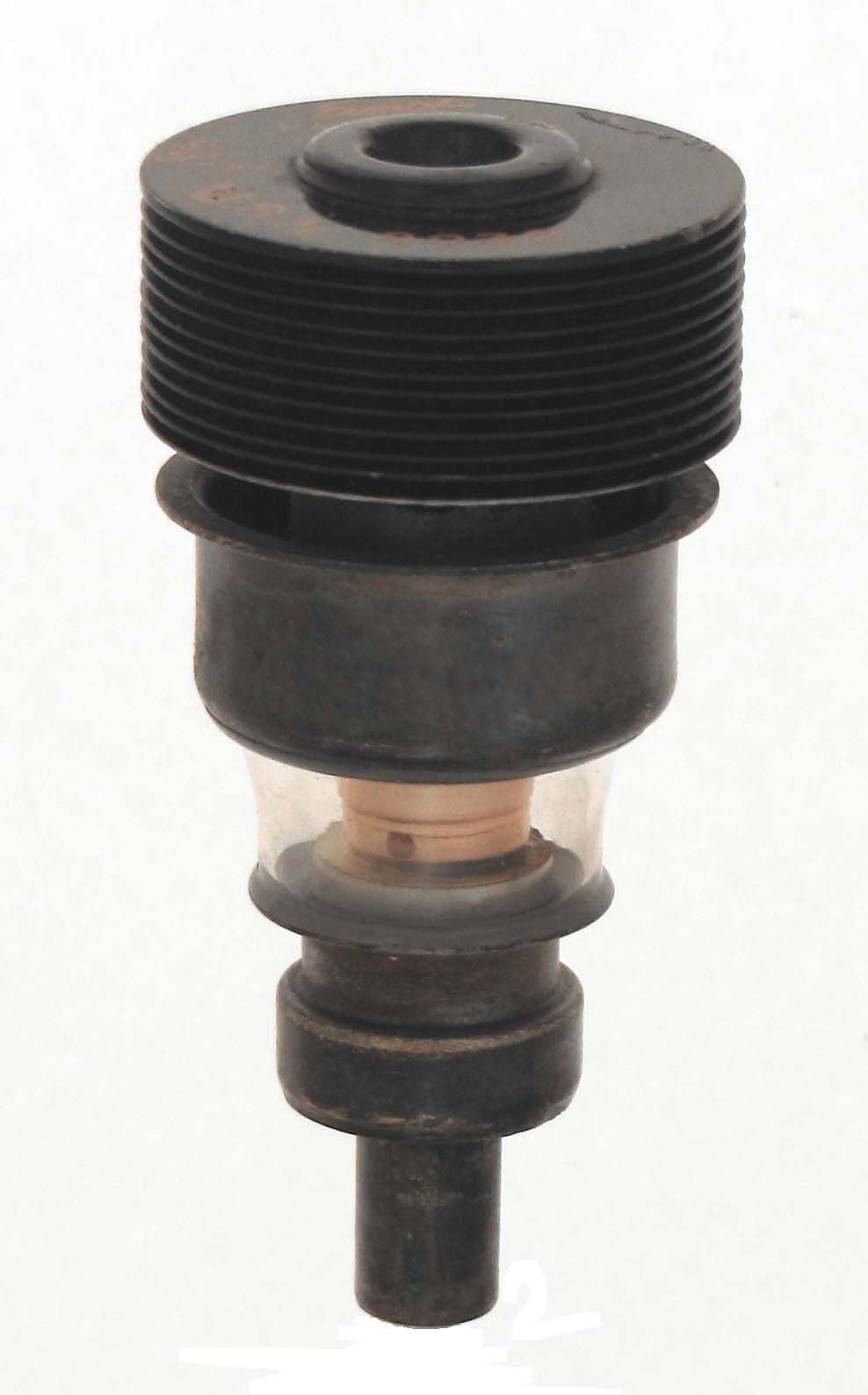

2C38

The 2C38 is a 25 watt, planar triode with a full rating frequency of 500 MHz and a mu of 100. The 2C38 physically the same as the early 2C39 and was combined with it. The extent of electrical differences between the tubes was probably slight and the 2C38 was never documented. The data shown is for the 2C39.

Length = 2.75" Diameter = 1.27"
Max voltage = 1000
Max current = 125 ma
Fil voltage = 6.3
Fil current = .90 to 1.05 amp         GOTO INDEX
