2C36

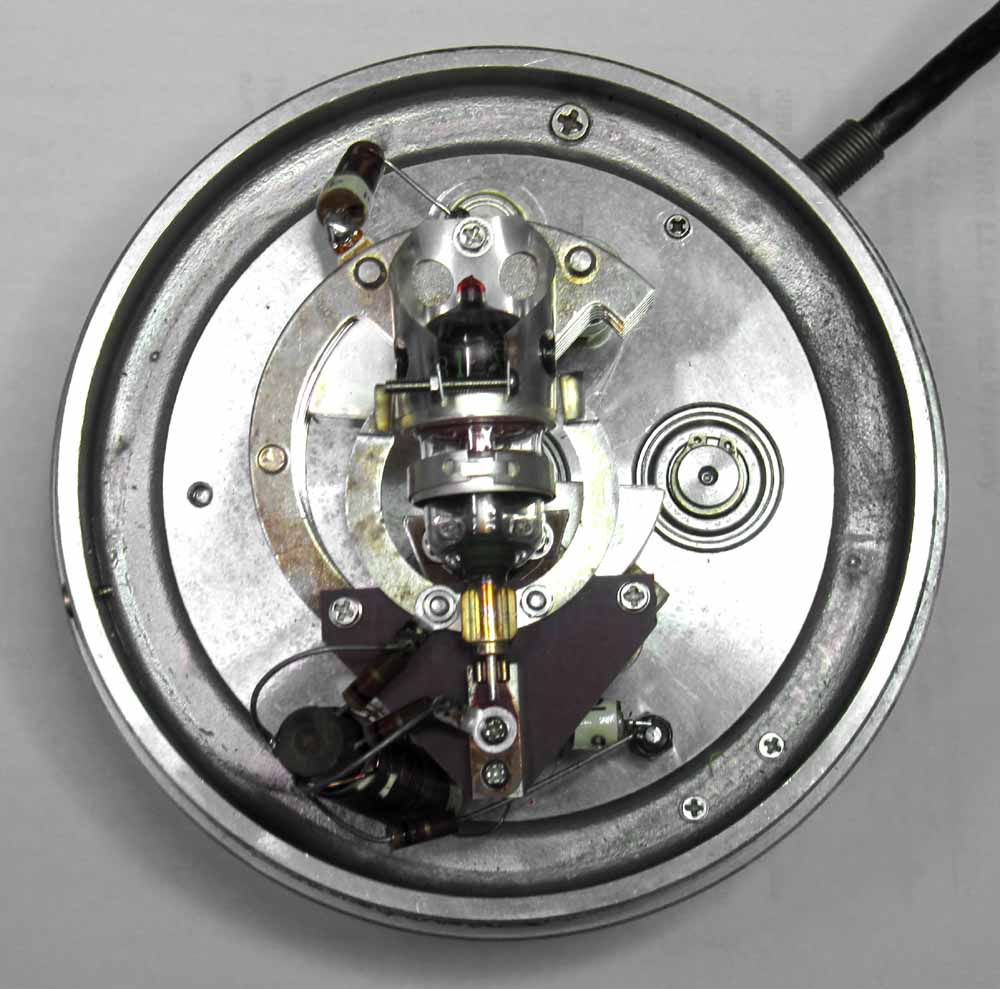

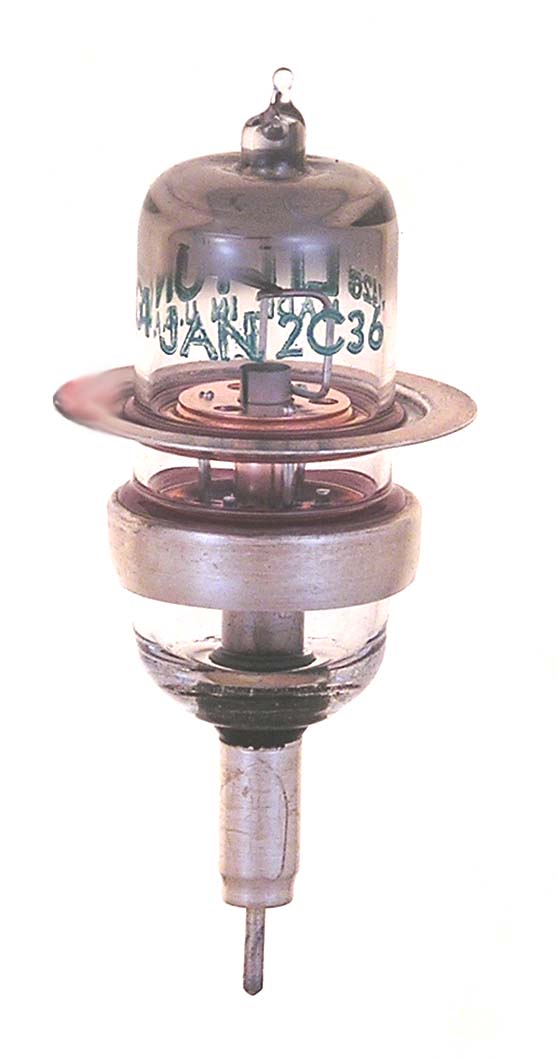

The 2C36 is a 5 watt coplanar triode with a mu of 25 with a full rating frequency of 1.75 GHz and usable to 5 GHz. Designed for pulse service. The second photo is of a tuned circuit employing the 2C36.

Length = 2.19" Diameter = 1.00"
Max voltage = 1500 pulsed
Max current = 12 ma (900 peak pulsed)
Fil voltage = 6.3
Fil current = 400 ma         GOTO INDEX
