298A

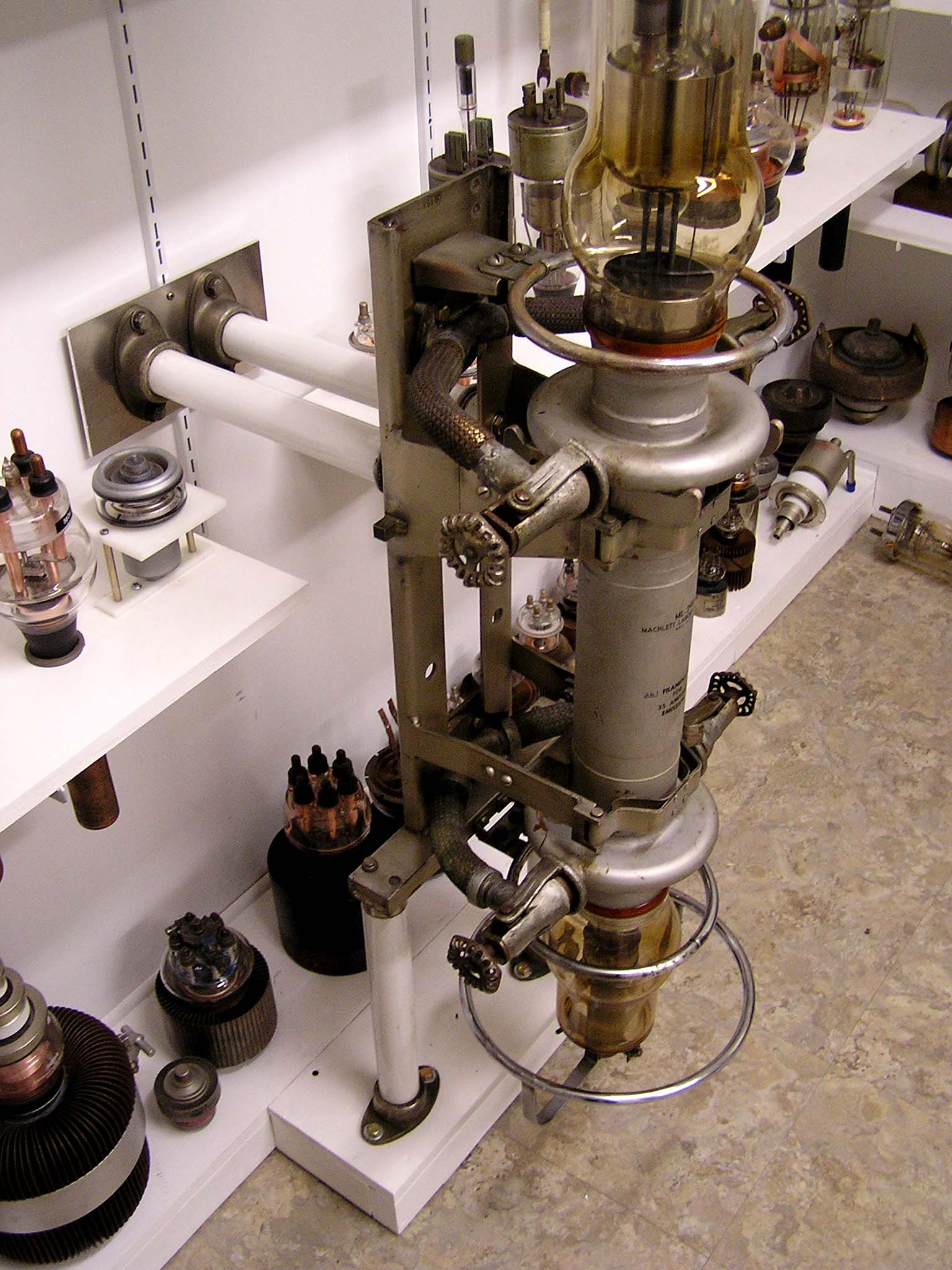

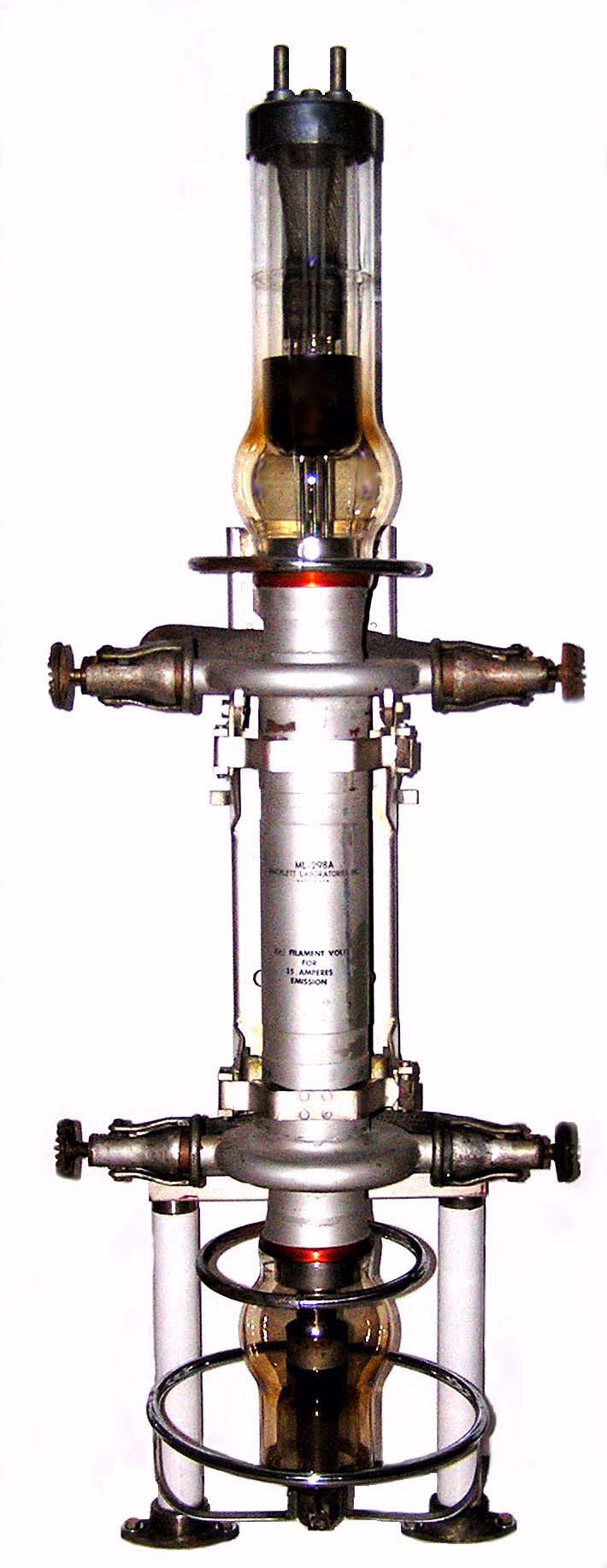

The 298A is a 100,000 watt, water cooled triode with a mu of 32 and a maximum frequency of 4 MHz. The anode is cooled with four shielded hoses and clamps that also provide RF and HV connection. This example was made by Machlett (ML-298A).

Length = 53.75" Diameter = 9.60"
Max voltage = 20000
Max current = 4.2 amps
Fil voltage = 27
Fil current = 225 amps         GOTO INDEX
