250R

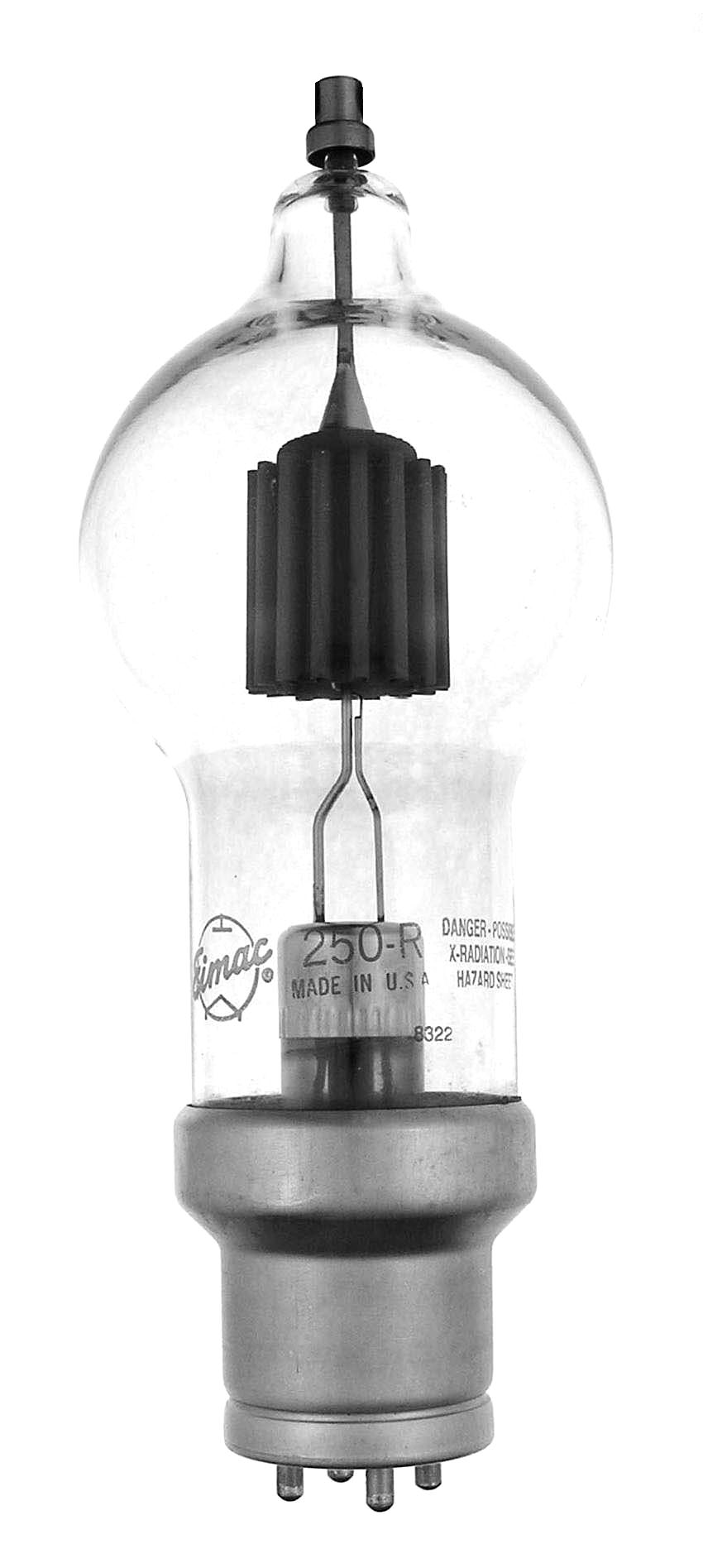

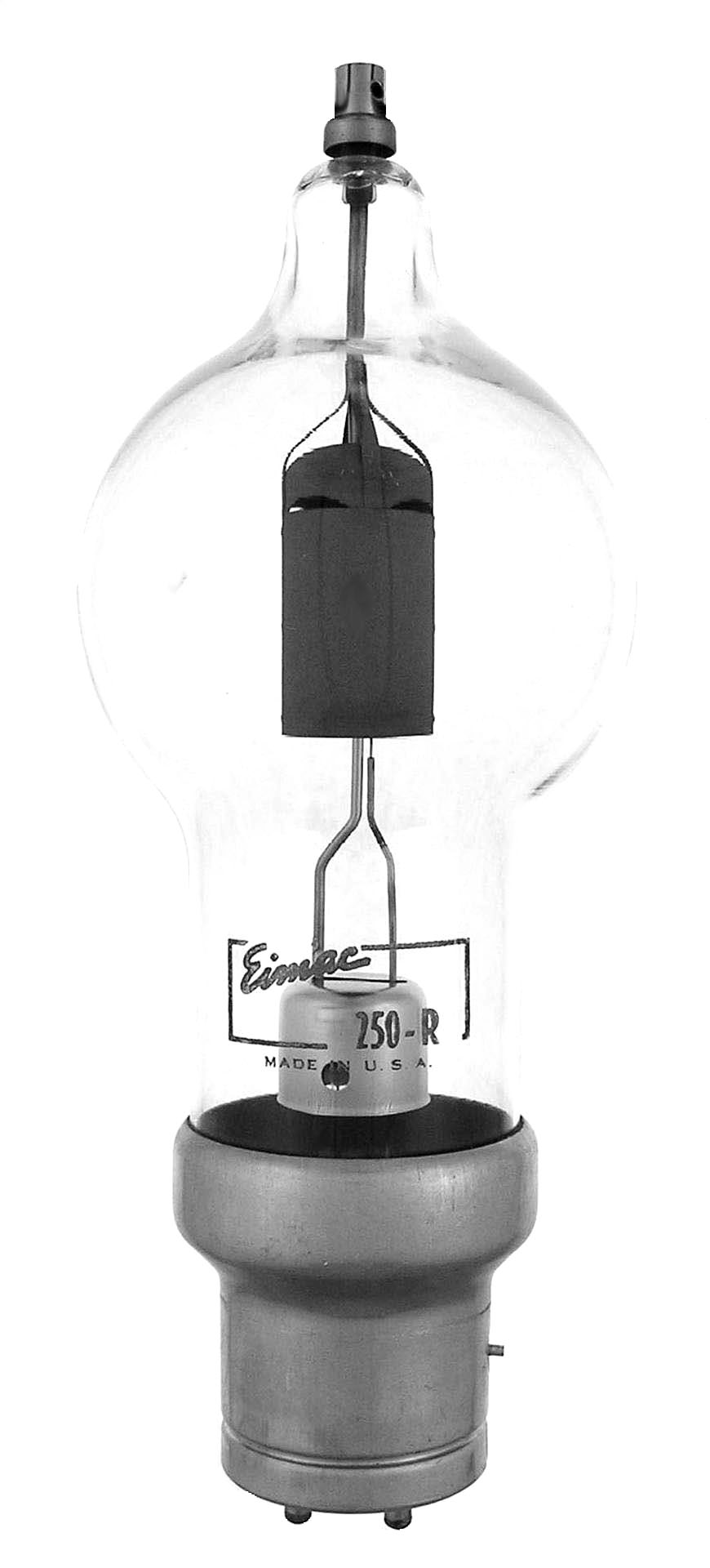

The 250R is a 150 watt dissipation high voltage rectifier. Eimac made them with two different plate configurations.

Length = 9.62" Diameter = 3.50"
Max voltage = 60000 PIV
Max current = 250 ma
Fil voltage = 5
Fil current = 9.7 to 11.2 amps         GOTO INDEX
