249C

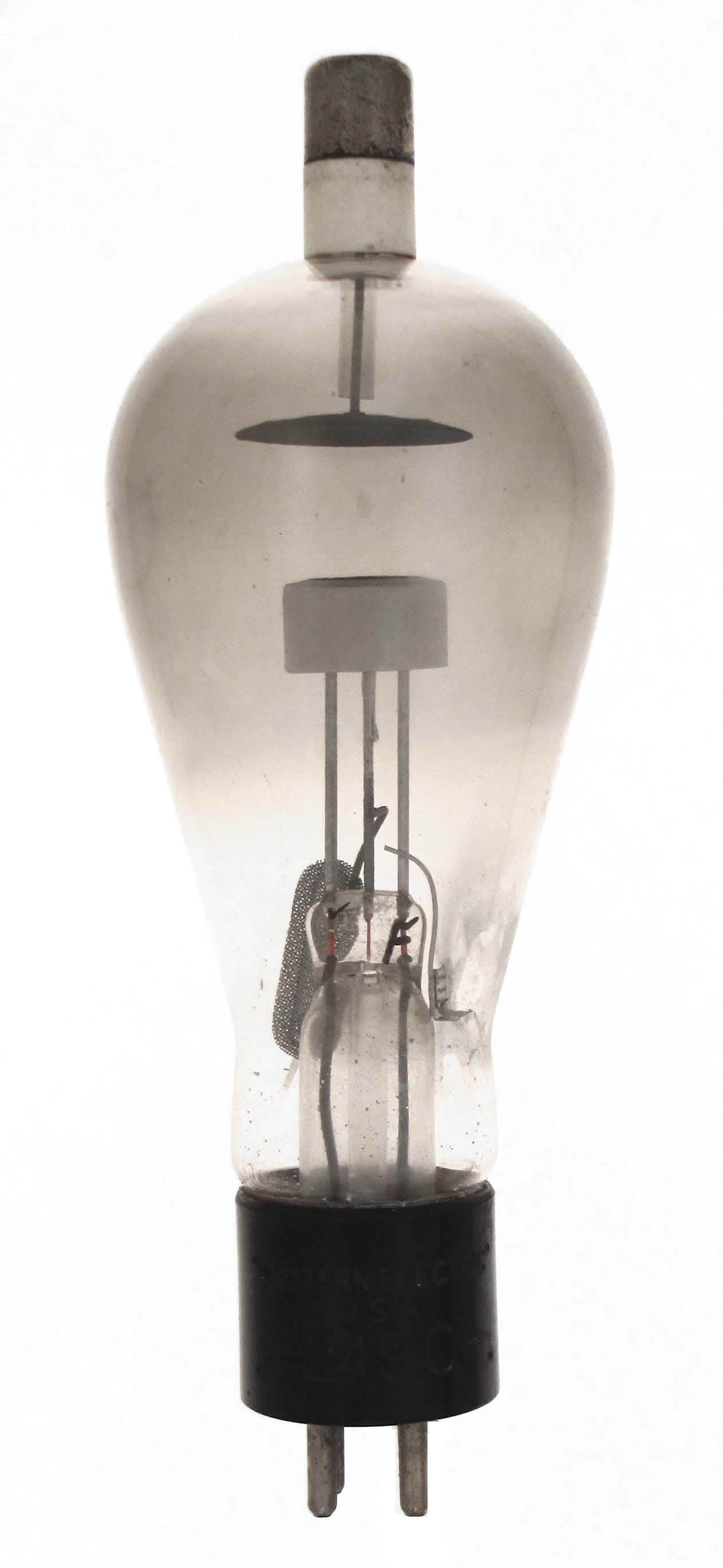

The 249C or WE249C is a half-wave mercury vapor rectifier. This is an improved version of the 249B with a larger anode cap. This example was made by Western Electric.

Length = 7.50" Diameter = 2.50"
Max voltage = 10000 PIV
Max current = .375 average, 1.5 peak amps
Fil voltage = 2.5
Fil current = 7.5 amps         GOTO INDEX
