2-25A

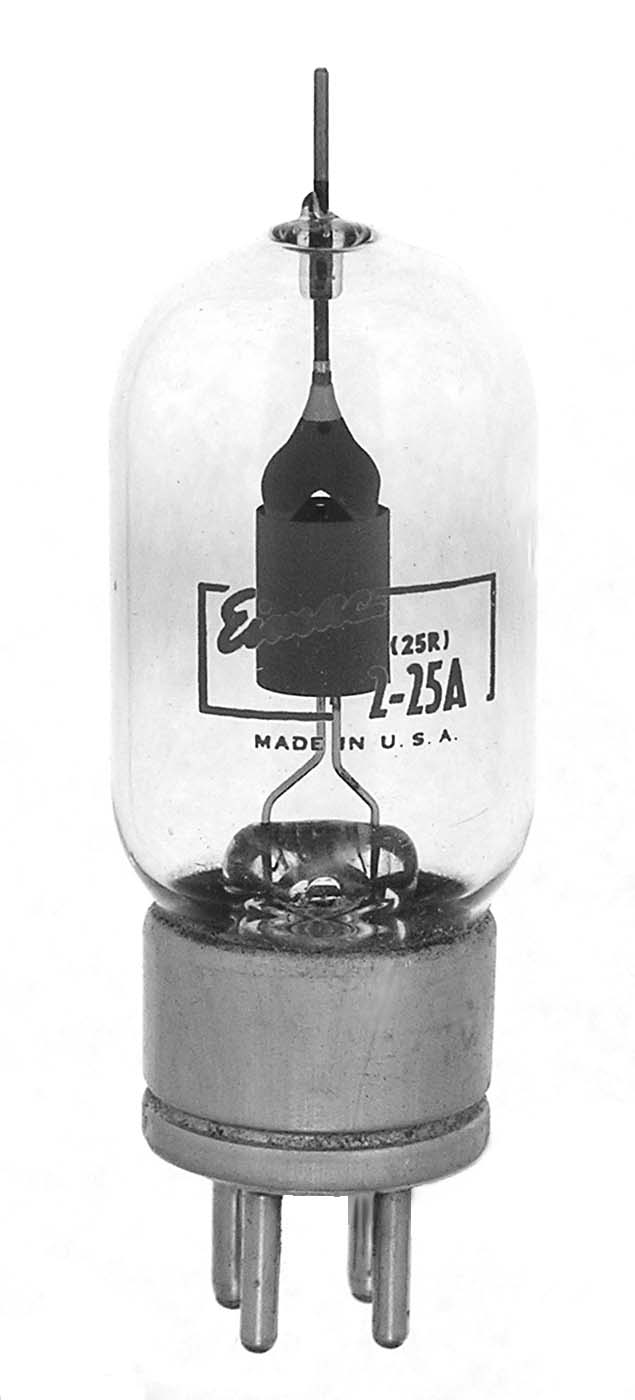

The 2-25A is a 15 watt high voltage rectifier made by Eimac.

Length = 4.38" Diameter = 1.44"
Max voltage = 25000 PIV
Max current = 50 ma
Fil voltage = 6.3
Fil current = 2.75 to 3.15 amps         GOTO INDEX
