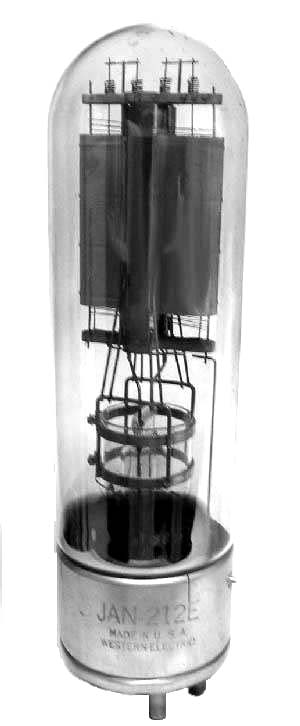

212E

The 212E is triode with a mu of 16 designed as an audio tube by Western Electric. Maximum ratings to 1.5 MHz.

Length = 12.50" Diameter = 3.25"
Max voltage = 2000
Max current = 300 ma
Fil voltage = 14
Fil current = 6 amps         GOTO INDEX
