203Z

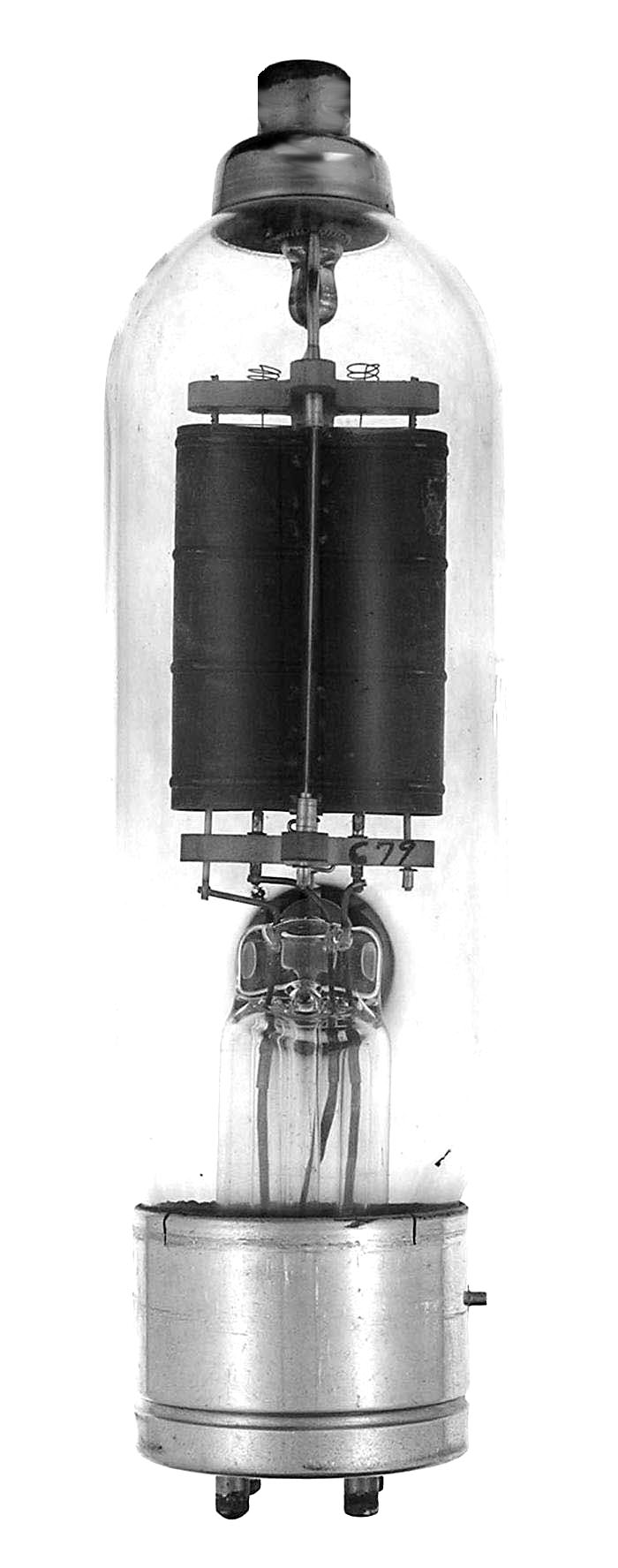

The 203Z is a zero bias, 65 watt triode with a mu of 85 made by Taylor.

Length = 8.25" Diameter = 2.30"
Max voltage = 1250
Max current = 175
Fil voltage = 10
Fil current = 3.25 amps         GOTO INDEX
