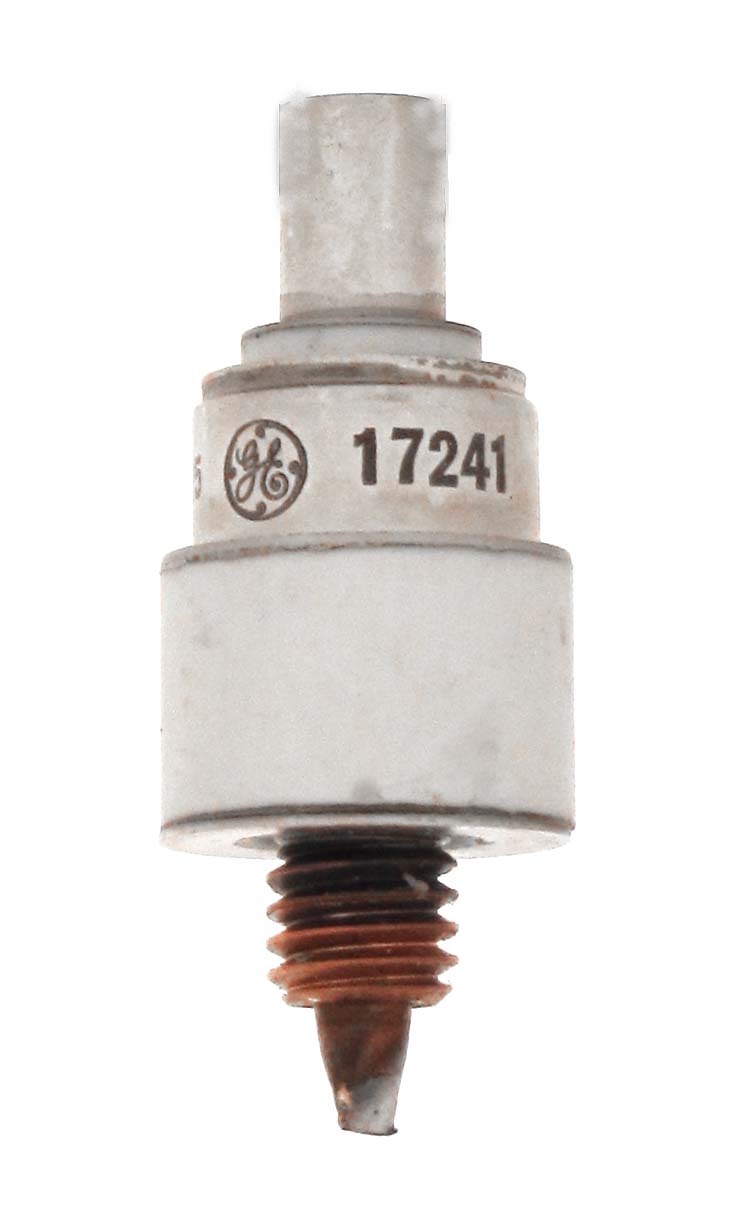

The 17241 or GE17241 is a 6.1 watt triode with a mu of 95 designed for high frequency up to 3000 MHz. Made by GE for pulse service.
Length = 2.03" Diameter = .75"
Max voltage = 600 (2500 pulse)
Max current = 25 ma (2 amps pulse)
Fil voltage = 6
Fil current = .97 amp GOTO INDEX
