172

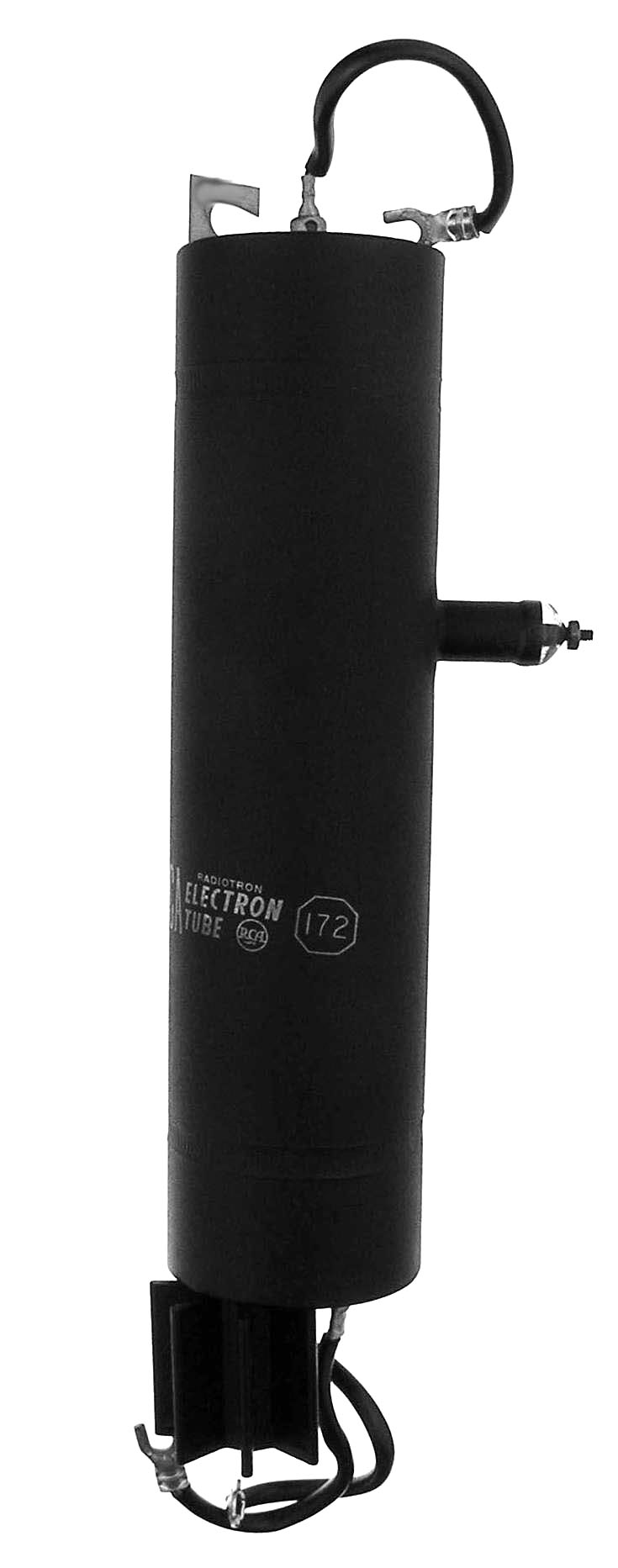

The 172 is a mercury-vapor tetrode thyratron designed for negative control. One application is welder control.

Length = 10.62" Diameter (cylinder) = 2.00"
Max voltage = 2000
Max current = 13 amps peak
Fil voltage = 5.5
Fil current = 11 amps         GOTO INDEX
