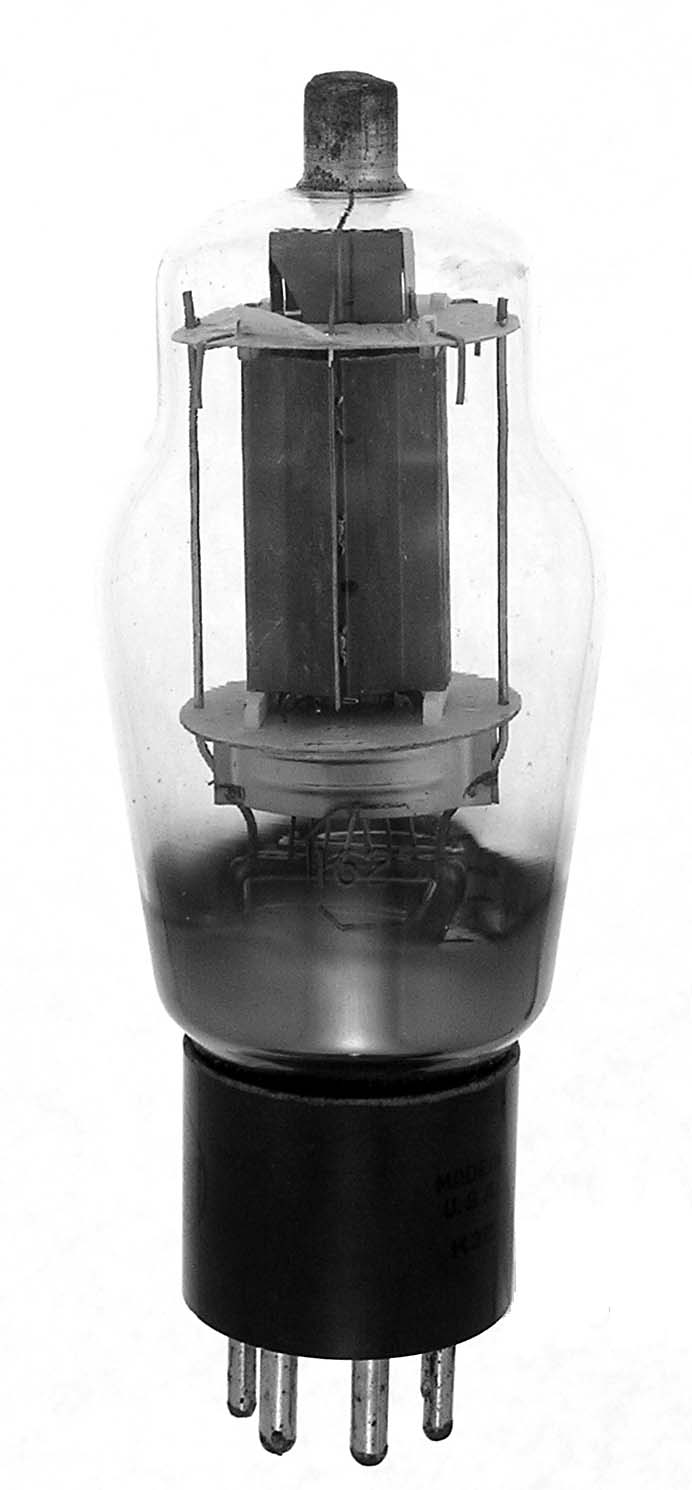

1625

The 1625 or VT-136 is a 30 watt dissipation pentode with full ratings to 60 MHz. Electrically the same as the 807 except for the filament voltage and a 7 pin base.

Length = 5.75" Diameter = 2.06"
Max voltage = 750
Max current = 100 ma
Fil voltage = 12.6
Fil current = .45 amps         GOTO INDEX
