1616

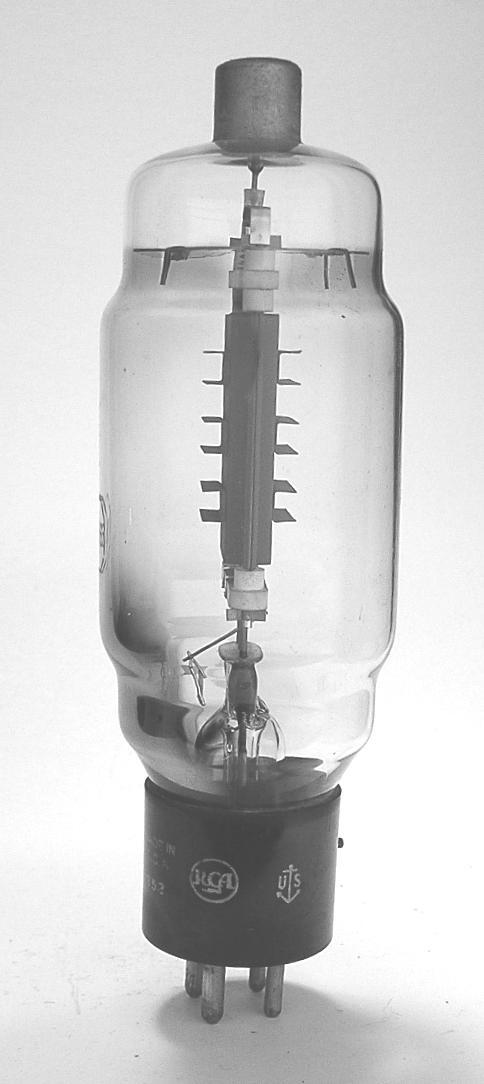

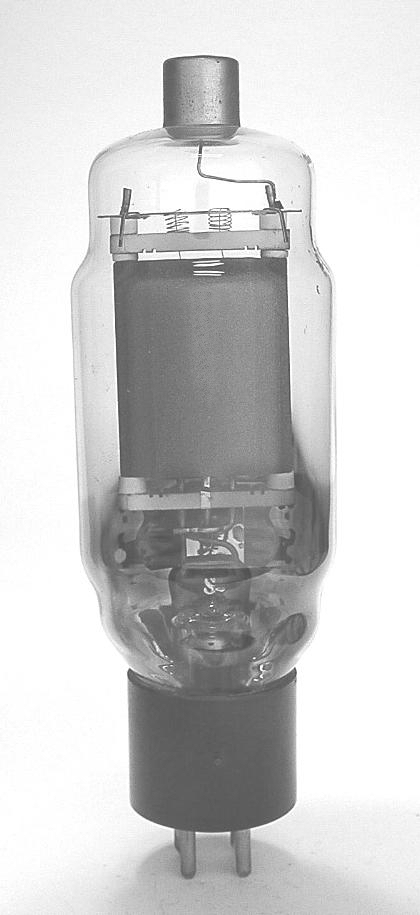

The 1616 is a half-wave rectifier designed for fast heating filament applications. Some 1616s had a thin plate with fins.

Length = 6.81" Diameter = 2.06"
Max voltage = 5500 PIV
Max current = .8 amps
Fil voltage = 2.5
Fil current = 5 amps         GOTO INDEX
