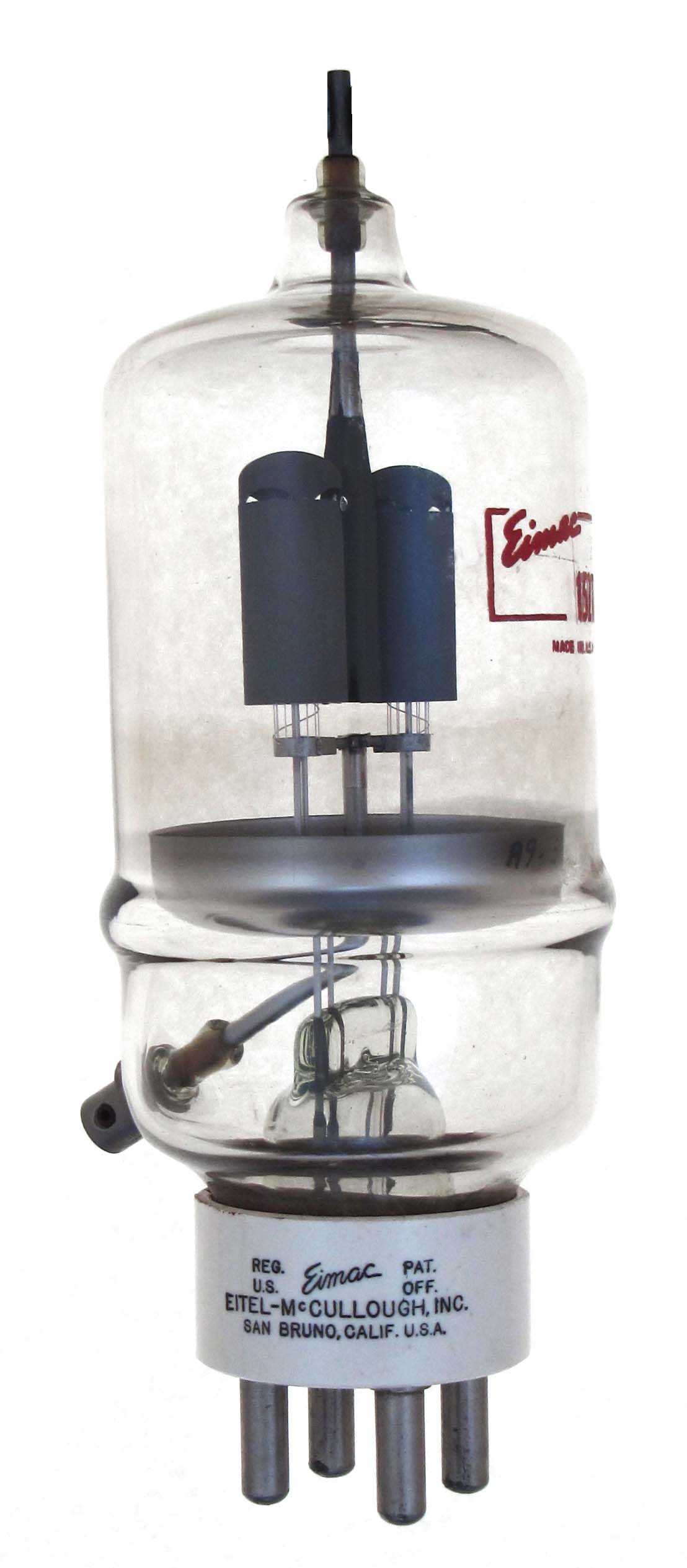

152TL

The 152TL or 3-150A2 is a 150 watt triode with a mu of 12 made with two 75T triodes placed in parallel. The 152TH had a mu of 20. They are usable up to 40 MHz at full rating.

Length = 7.63" Diameter = 2.57"
Max voltage = 3000
Max current = 450 ma
Fil voltage = 5 or 10
Fil current = 12.5 or 6.25 amps         GOTO INDEX
