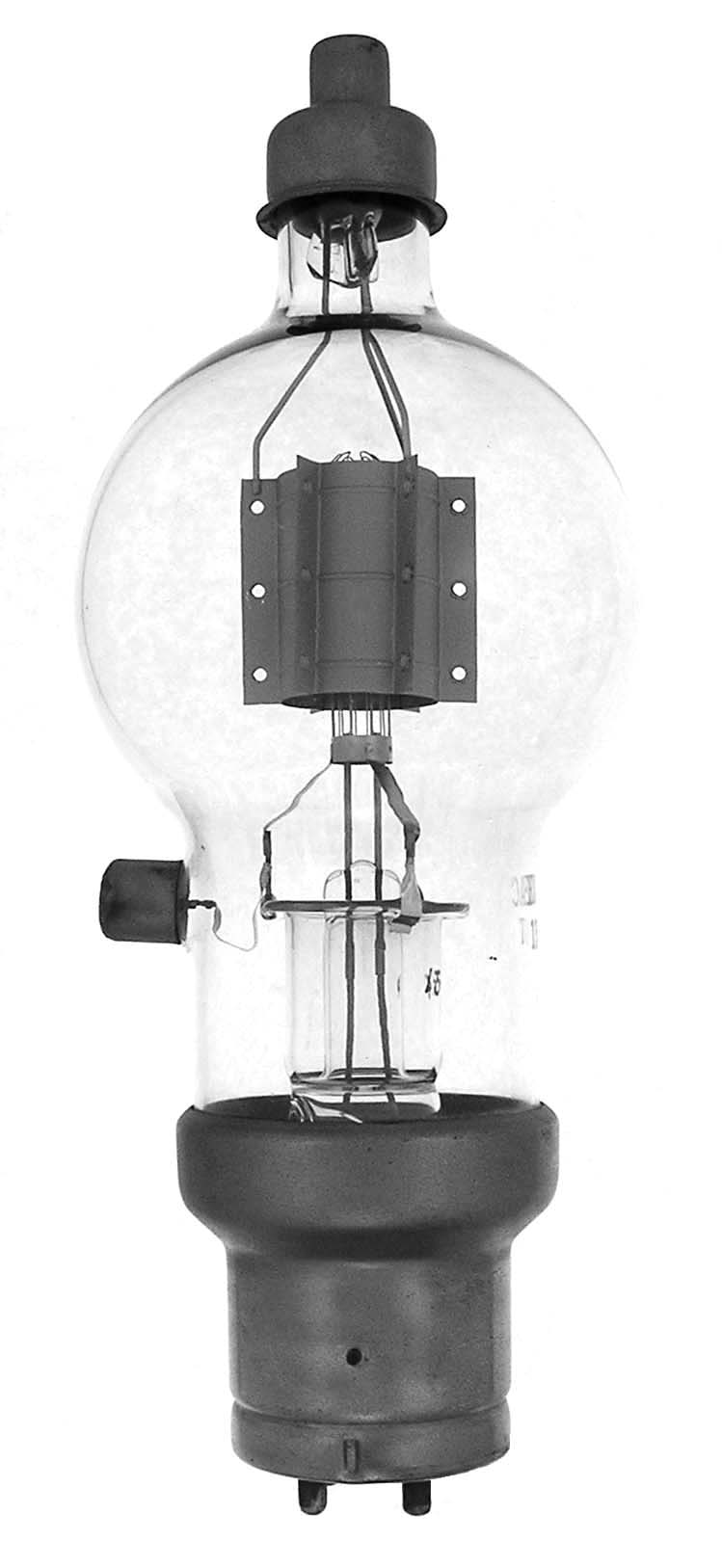

150T

The 150T triode was the first Eimac tube introduced in advertisments in November 1934. It was so under rated that it became re-designated and replaced by the 250T . The tube had a mu of 12 and was useful to 250 MHz.


Length = 9.75" Diameter = 3.50"
Max voltage = 3000
Max current = 220 ma
Fil. voltage = 5
Fil. current = 10 amps
Data sheet:
