100R/8020

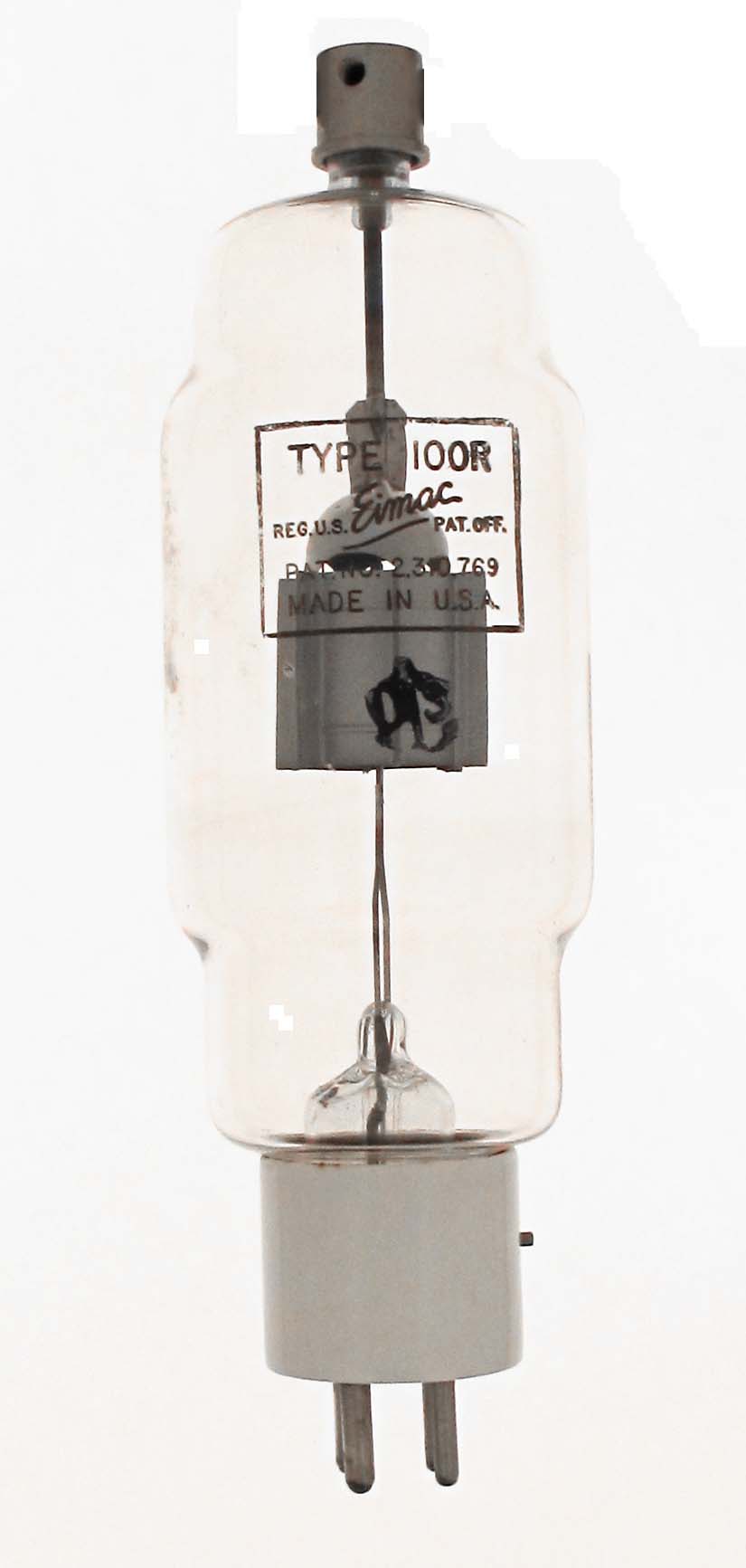

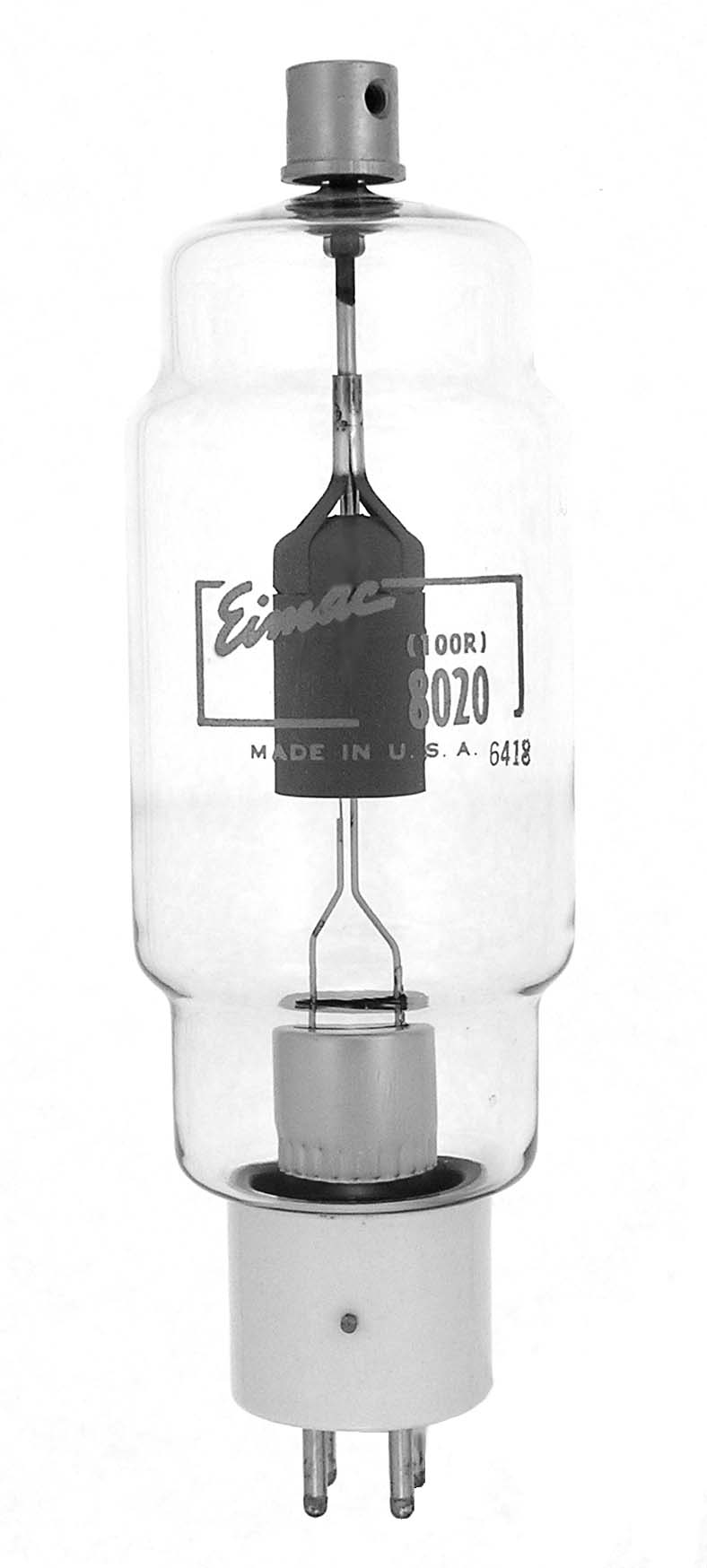

The 100R or 8020 is a 60 watt, half-wave rectifier designed for fast heating filament applications by EIMAC. The first example is the original design.

Length = 7.25" Diameter = 2.32"
Max voltage = 40000 PIV
Max current = .1 amps
Fil voltage = 5
Fil current = 6.5 amps         GOTO INDEX
