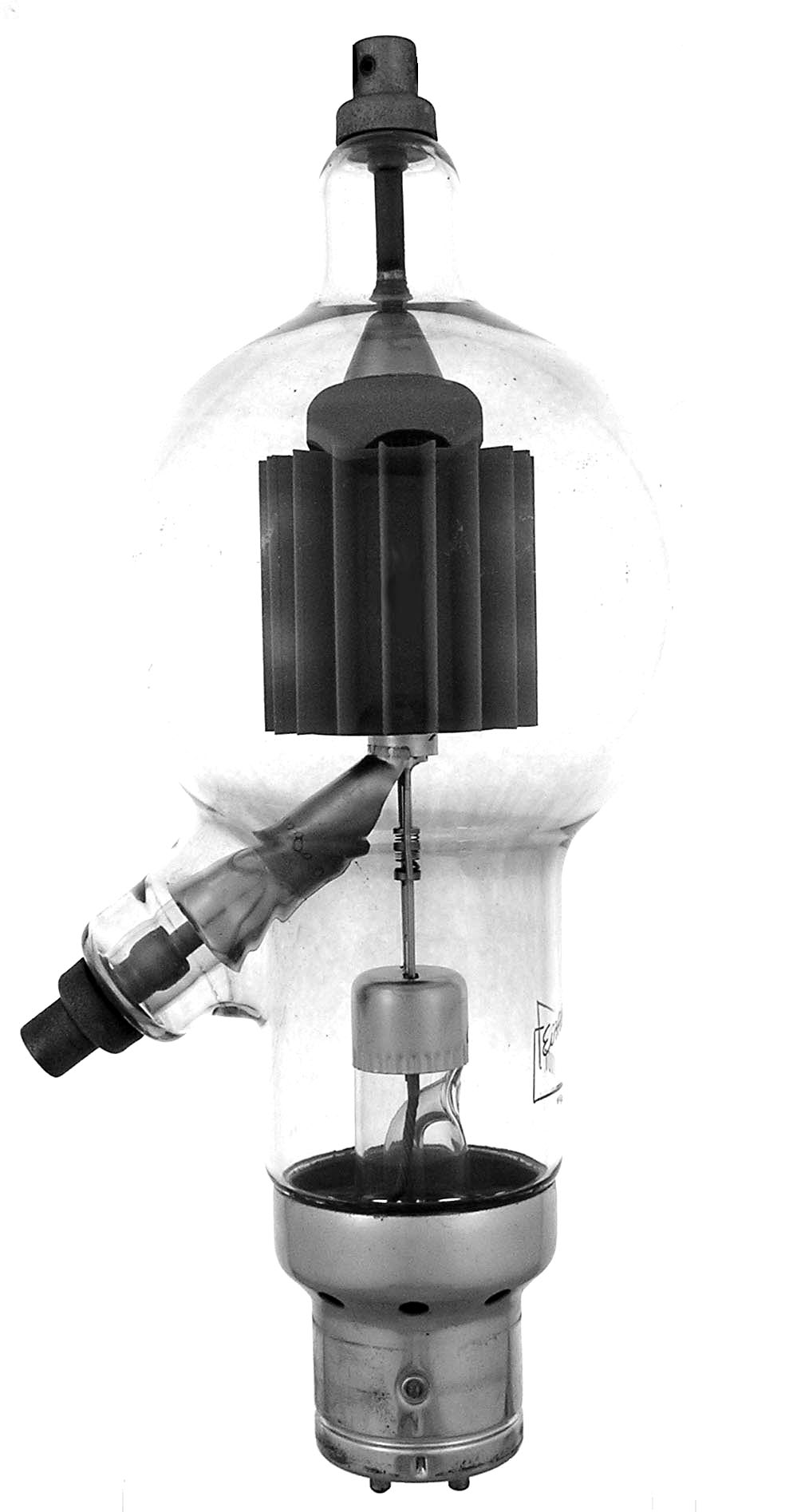

1000T

The 1000T is a 1000 watt triode with a mu of 35 and a maximum frequency of 50 MHz for full output.

Length = 12.25" Diameter = 5.13"
Max voltage = 7500
Max current = 750 ma
Fil voltage = 7.5
Fil current = 15.5 amps         GOTO INDEX
